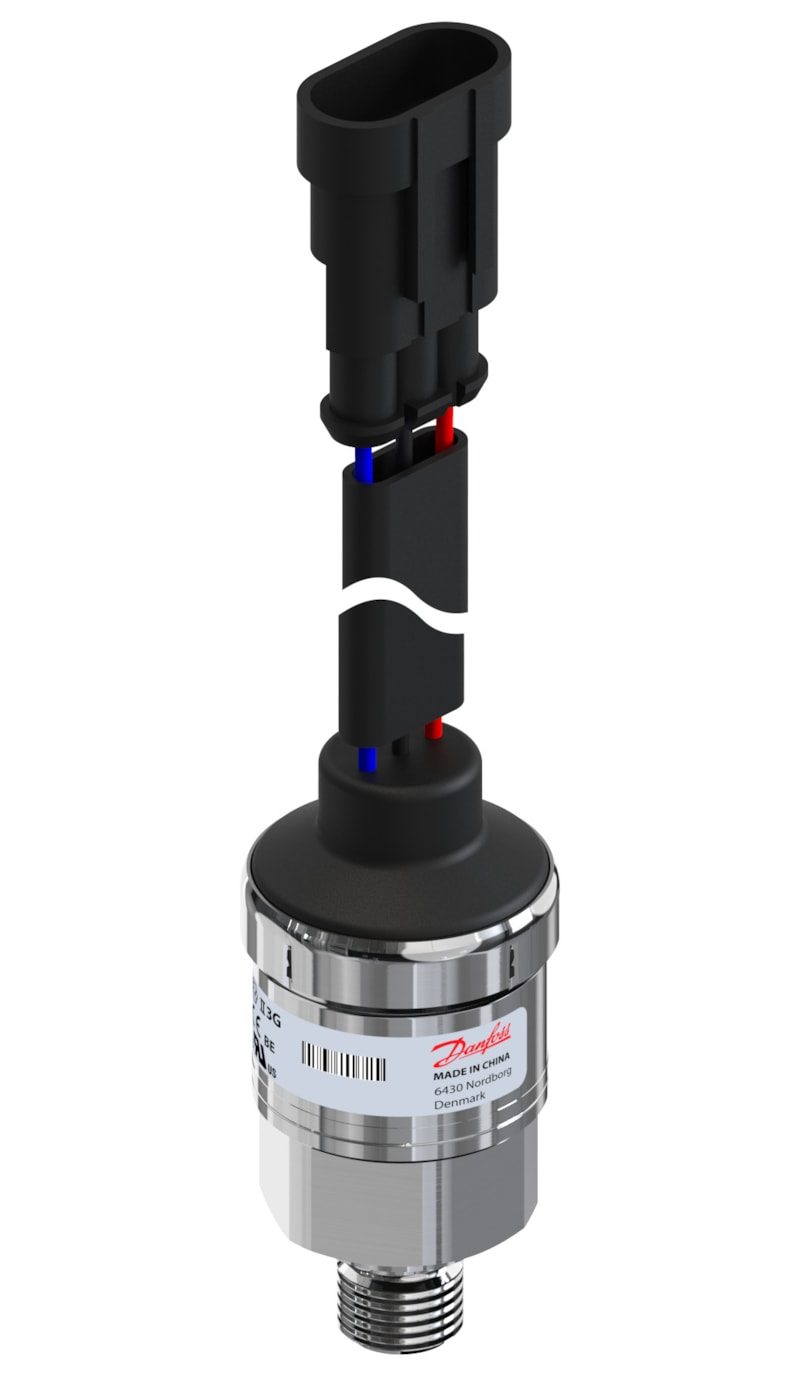

Danfoss MBS 3200 Pressure Transmitter 0 to 1.6 bar Absolute AMP SuperSeal
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 heavy-duty pressure transmitter for mobile and off-highway use with high vibration and shock. Absolute range 0 to 1.6 bar (0 to 23.2 psi), 4-20 mA 2-wire output, AISI 316L stainless steel wetted parts. G 1/4 male (EN 837) port; AMP SuperSeal 3-pin male with flying leads. Spec key MBS 3200-1221-A8AB04-0. Absolute reference, IP67, overload 9.6 bar. EAN 5702428928472.
Technical Specifications
- Type
- MBS 3200
- Range
- 0 to 1.6 bar (0 to 23.2 psi)
- Reference
- absolute
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Accuracy
- <= +/-0.5% FS typ., +/-1% FS max
- Non-linearity
- +/-0.2% BFSL
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 male (EN 837)
- Electrical connection
- AMP SuperSeal 3-pin male, flying leads
- Enclosure
- IP67
- Ambient temp
- -40 to +100 C
- Medium temp
- -40 to +125 C
- Overload pressure
- 9.6 bar
- Response time
- 4 ms max
- Approvals
- CE; UL Recognized; C UL US
- Spec key
- MBS 3200-1221-A8AB04-0
- EAN
- 5702428928472
- Part number
- 060G6454
- Net weight
- 0.132 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Flying leads
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428928472
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 9.6 bar
- Overload pressure max. [psi]
- 139 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 1.6 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 23.2 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3200-1221-A8AB04-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- G 1/4 male (EN 837)
- Pressure Rating
- 0 to 1.6 bar (0 to 23.2 psi) absolute
- Temperature Range
- -40 C to +125 C (medium)
- IP Rating
- IP67
- Classification / Approval
- CE; UL Recognized; C UL US; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 absolute-reference low-range transmitter with AMP SuperSeal plug; distinct from sealed-gauge 060G6307 (0-6 bar) and 060G6310 (0-16 bar).
