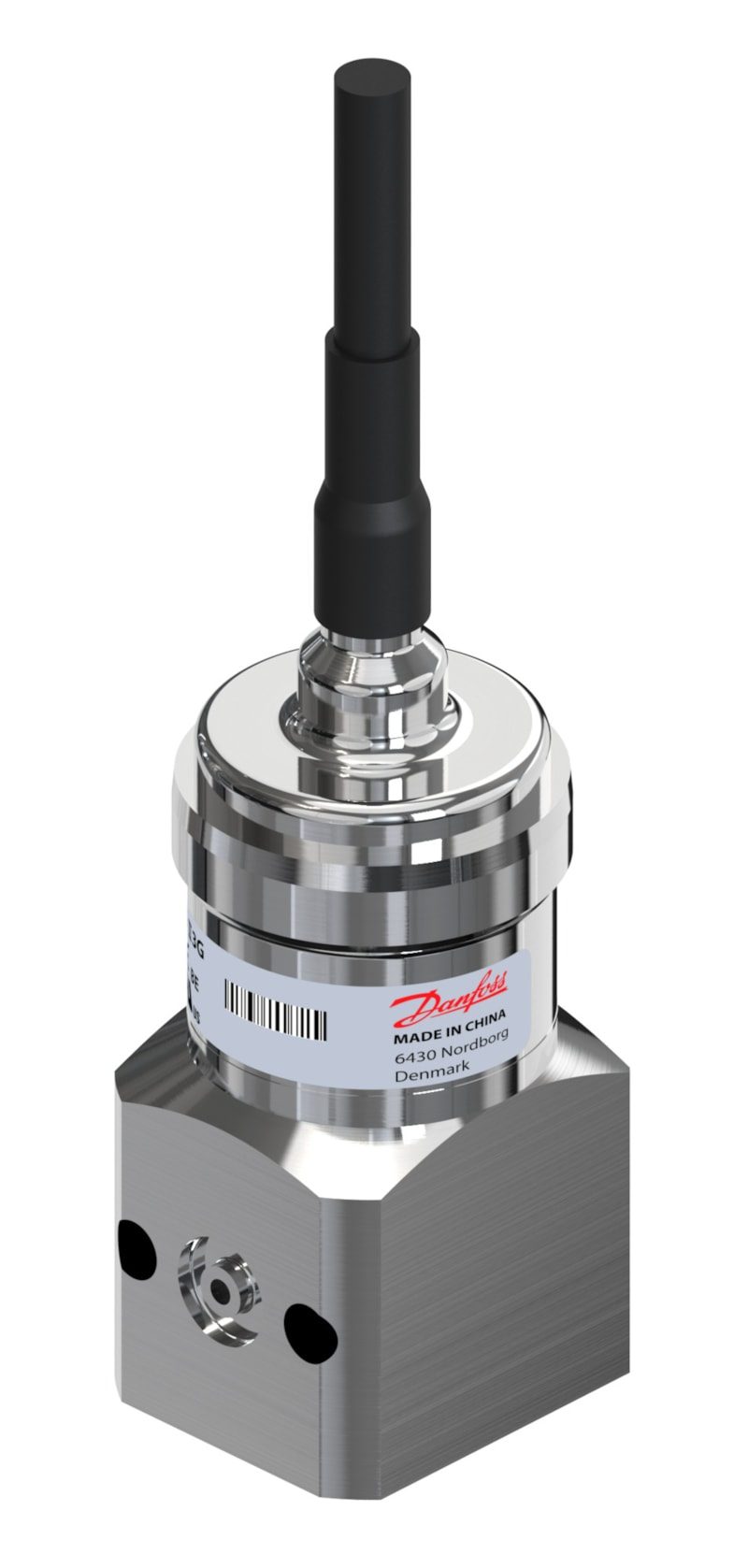

Danfoss MBS 3350 Pressure Transmitter 0 to 6 bar Flange Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3350 pressure transmitter with flush block-adapter flange for viscous/crystallising media. Range 0 to 6 bar (0 to 87 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. Flange block adapter (port Ø2.5 mm); cable outlet 0.55 m (IP67). EAN 5702428919302.
Technical Specifications
- Type
- MBS 3350
- Range
- 0 to 6 bar (0 to 87 psi)
- Reference
- sealed gauge
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- Block adapter with flange, port Ø2.5 mm (female)
- Electrical connection
- Cable outlet 0.55 m
- Enclosure
- IP67
- Media temp
- -40 to 85°C
- EAN
- 5702428919302
- Part number
- 060G6435
- Net weight
- 0.349 Kilogram
- Product group
- Sensors
- + supply
- Black
- - common
- Blue
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Cable length [in]
- 21.65 in
- Cable length [m]
- 0.55 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Comments
- SCREEN: CONNECTED TO ENCLOSURE
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened Ship
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428919302
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -20 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 36 bar
- Overload pressure max. [psi]
- 522 psi
- Pressure connection notes
- Block adapter with flange
- Pressure connection size
- Port Ø2.5
- Pressure connection type
- Flange
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 6 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 87 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3350-1811-DDCD28-3
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- Block adapter with flange, port Ø2.5 mm (female)
- Pressure Rating
- 0 to 6 bar Flange Cable
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- Classification / Approval
- CE; EAC; UL Recognized; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3350 flush block-adapter flange version with 0.55 m cable; suits viscous or crystallising media where a standard bore would clog.
