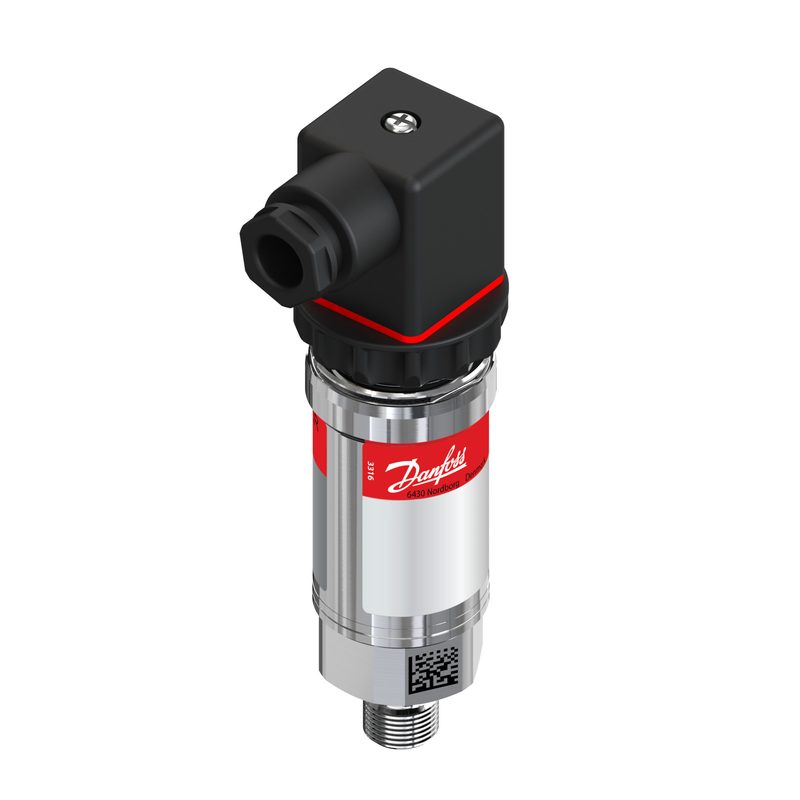

Danfoss MBS 4201 Pressure Transmitter 0 to 10 bar Angular

Danfoss MBS 4201 heavy-duty pressure transmitter with high vibration and shock resistance for marine and heavy industry. Range 0 to 10 bar (0 to 145 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E port; angular connector Pg 11 (EN 175301-803-A, IP65). EAN 5702428914802.

Type

MBS 4201 (heavy-duty, high vibration/shock)

Range

0 to 10 bar (0 to 145 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E, Form E)

Electrical connection

Angular connector Pg 11, EN 175301-803-A

Enclosure

IP65

Vibration

up to 15 g / shock up to 500 g

Media temp

-40 to 85°C

EAN

5702428914802

Part number

060G6428

Net weight

0.184 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Approval

ATEX

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

EX Sales text

Ex iA IIC T5..T4 Ga/Gb

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428914802

Intrinsically safe

Yes

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 4201-2021-A6GB04-2

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

10 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Pressure Rating

0 to 10 bar Angular

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

CE; EAC; UL Recognized; RoHS

HS Code

9026.20
