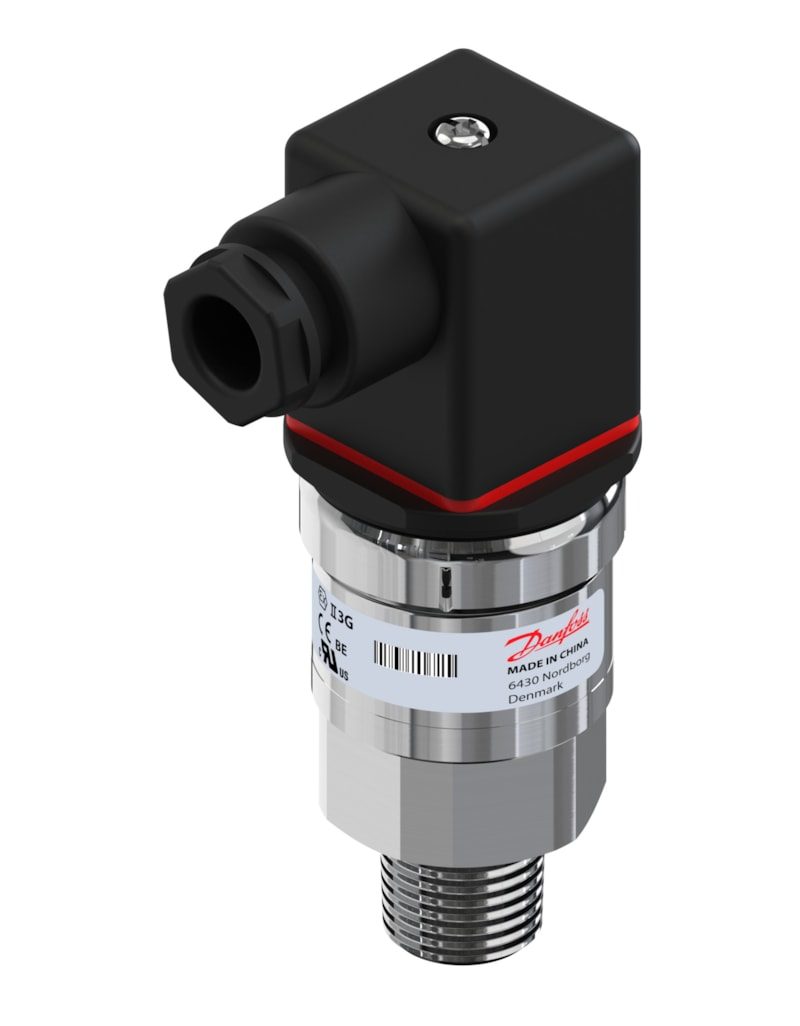

Danfoss AKS 33 Pressure Transmitter 0 to 16 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 33 pressure transmitter for refrigeration control. Range 0 to 16 bar (0 to 232 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. R 3/8 male (ISO 7-1) connection; angular connector Pg 9 (EN 175301-803-A, IP65). EAN 5702428909808.
Technical Specifications
- Type
- AKS 33
- Range
- 0 to 16 bar (0 to 232 psi)
- Reference
- sealed gauge
- Output
- 4-20 mA (2-wire)
- Supply
- 10-30 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- R 3/8 male, ISO 7-1
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- EAN
- 5702428909808
- Part number
- 060G6419
- Net weight
- 0.167 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428909808
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 96 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 7-1
- Pressure connection type
- R
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 33-2221-A1PT05-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- R 3/8 male (ISO 7-1)
- Pressure Rating
- 0 to 16 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- CE; EAC; UL Recognized; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 33 refrigeration transmitter, R 3/8 tapered connection; ADAP-KOOL and general refrigeration pressure sensing.
