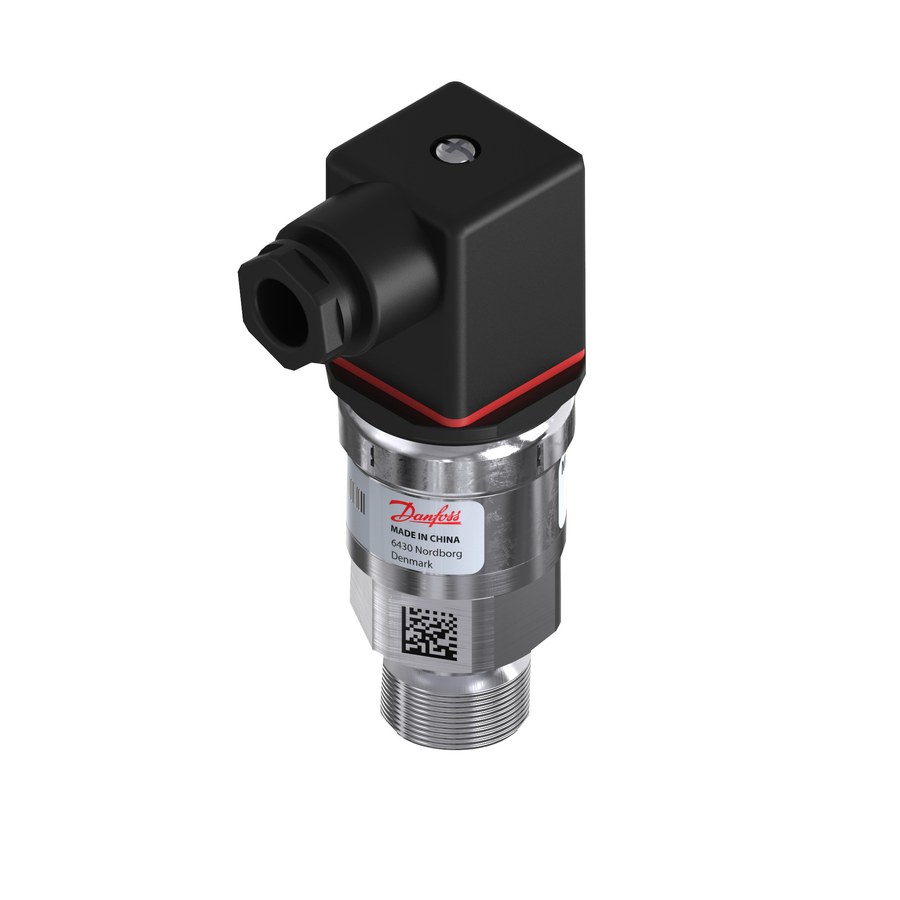

Danfoss MBS 3300 Pressure Transmitter 0 to 10 bar Angular (060G6398)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 compact pressure transmitter for general industrial and marine applications. Range 0 to 10 bar (0 to 145 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/2 male Form E port; angular connector Pg 11 (EN 175301-803-A, IP65). EAN 5702428905077. P/N 060G6398.
Specifications
- Part number
- 060G6398
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar Angular
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3300 with G 1/2 Form E port and angular Pg 11 connector; general industrial pressure sensing.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
