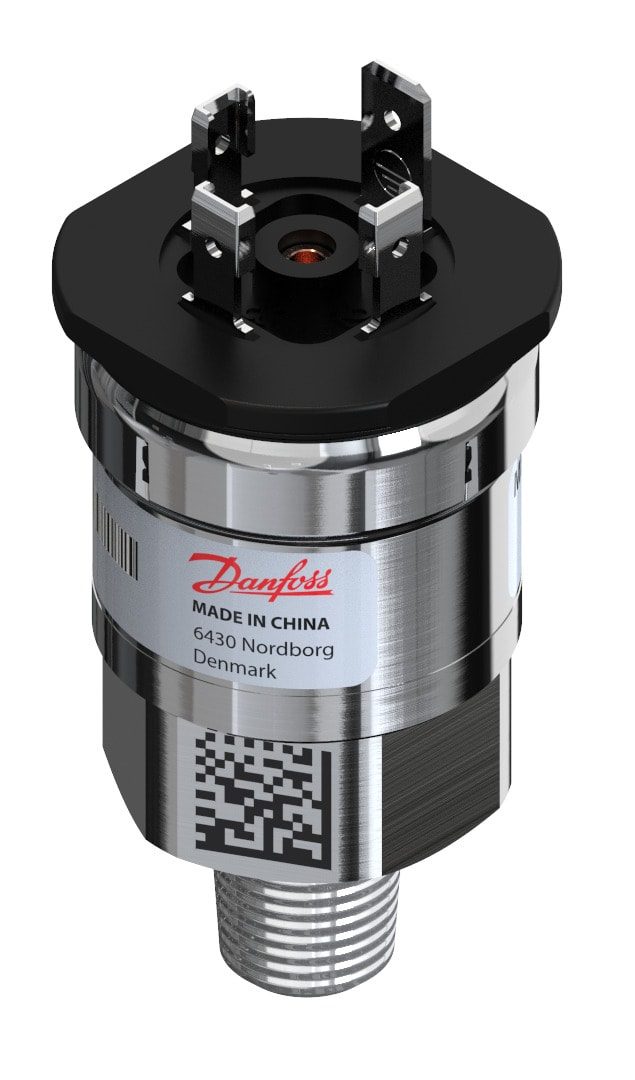

Danfoss AKS 3000 Pressure Transmitter -1 to 10 bar Angular NPT

Danfoss AKS 3000 refrigeration pressure transmitter. Range -1 to 10 bar (-14.5 to 145 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. 1/4-18 NPT male port; angular connector Pg 9 (EN 175301-803-A). EAN 5702428892001.

Type

AKS 3000

Range

-1 to 10 bar (-14.5 to 145 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

1/4-18 NPT male (ANSI/ASME B1.20.1)

Electrical connection

Angular connector Pg 9, EN 175301-803-A

Enclosure

IP65

Media temp

-40 to 85°C

Approvals

ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), EAC

EAN

5702428892001

Part number

060G6372

Net weight

0.125 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

2 %

Accuracy, typical [±FS%]

1 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428892001

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload press. max. [kg/cm2]

66 kg/cm²

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

-1 bar

Pressure range [kg/cm2] [max]

10 kg/cm²

Pressure range [kg/cm2] [min]

-1 kg/cm²

Pressure range [psi] [max]

145.03 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

AKS 3000-N831-A0EC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

1/4-18 NPT male (ANSI/ASME B1.20.1)

Pressure Rating

-1 to 10 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

EAC; RoHS

HS Code

9026.20
