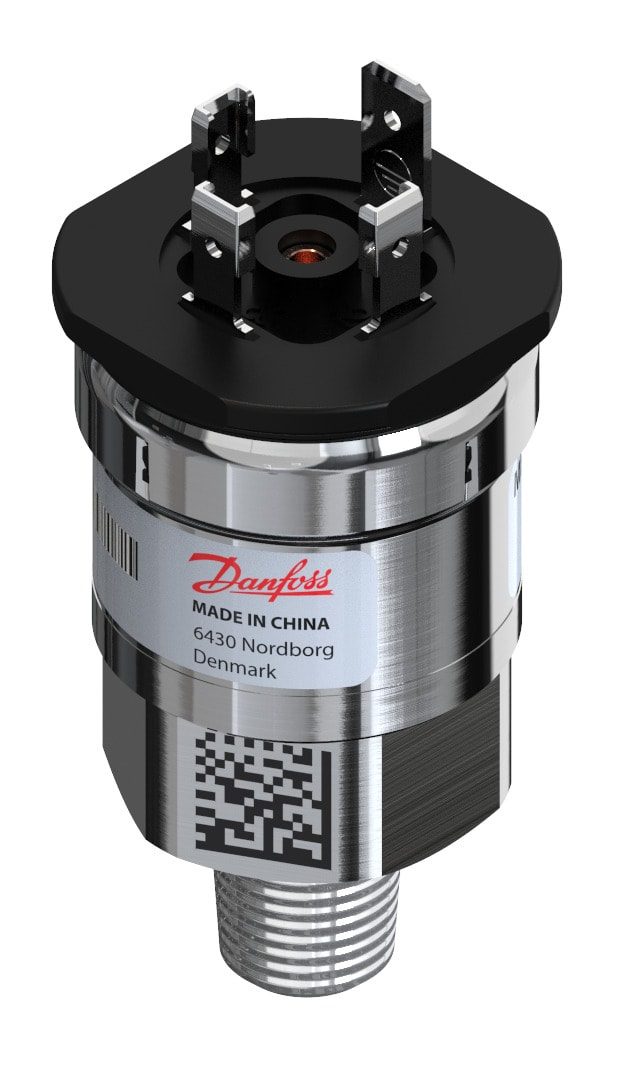

Danfoss AKS 3000 Pressure Transmitter -1 to 29.42 bar Angular NPT (060G6373)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 3000 refrigeration pressure transmitter. Range -1 to 29.42 bar (-14.5 to 426.7 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. 1/4-18 NPT male port; angular connector Pg 9 (EN 175301-803-A). EAN 5702428892018. P/N 060G6373.
Specifications
- Part number
- 060G6373
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 29.42 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- 1/4-18 NPT male (ANSI/ASME B1.20.1)
Compatibility
AKS 3000 compound range for refrigeration/HVAC with 1/4-18 NPT port and angular Pg 9 connector.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
