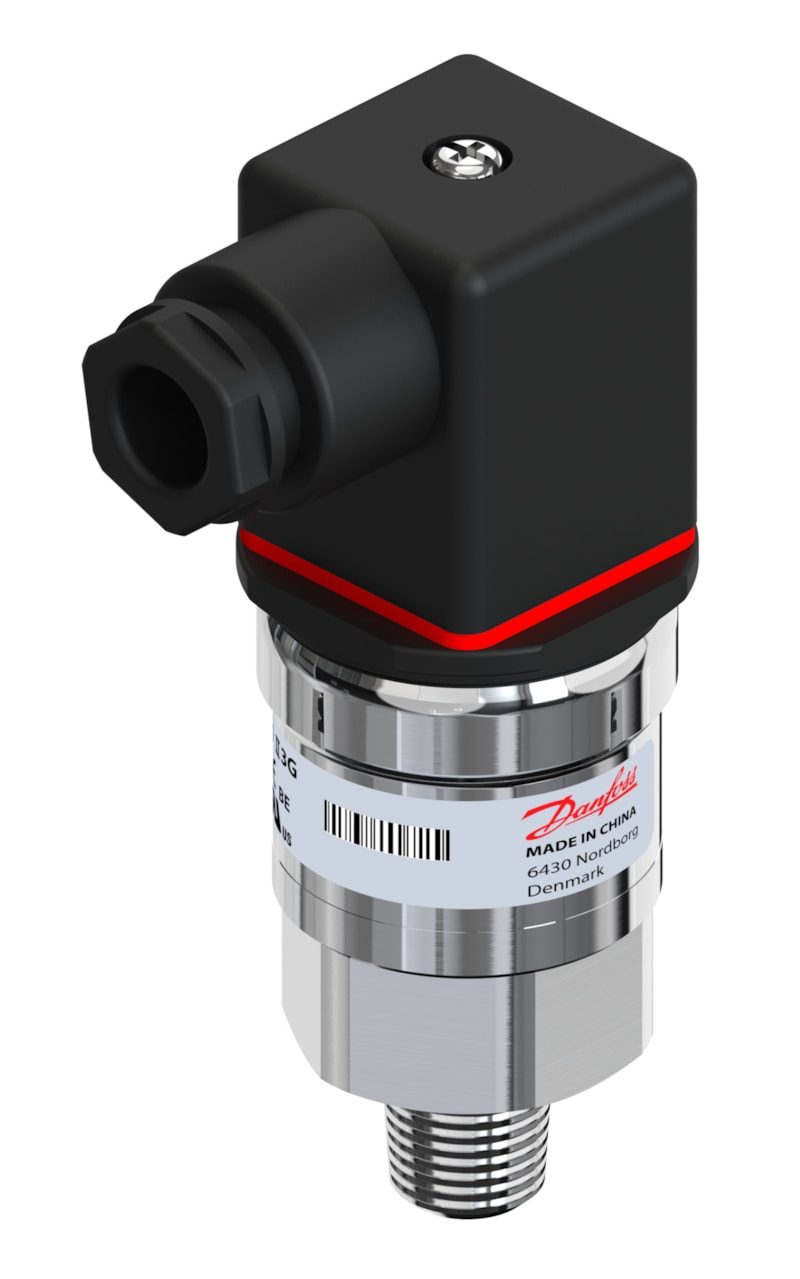

Danfoss MBS 3050 Pressure Transmitter 0 to 250 bar 0-10 V

Danfoss MBS 3050 pressure transmitter with integrated pressure snubber. Range 0 to 250 bar (0 to 3625 psi), 0-10 V 3-wire voltage output, AISI 316L wetted parts. R 1/4 tapered male port (ISO 7-1); angular connector Pg 9 (EN 175301-803-A, IP65). EAN 5702428901277.

Type

MBS 3050 (with pressure snubber)

Range

0 to 250 bar (0 to 3625 psi)

Reference

sealed gauge

Output

0-10 V (3-wire)

Supply

15-30 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

R 1/4 male (ISO 7-1)

Electrical connection

Angular connector Pg 9, EN 175301-803-A

Enclosure

IP65

Media temp

-40 to 85°C

EAN

5702428901277

Part number

060G6388

Net weight

0.162 Kilogram

Product group

Sensors

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Autofrettage Pressure

1600 bar

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

11.5

In scope of WEEE

Yes

International Article Number

5702428901277

Intrinsically safe

No

Low Clipping level

0

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

1500 bar

Overload pressure max. [psi]

21755 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

ISO 7-1

Pressure connection type

R

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3050-3435-A1CD13-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

R 1/4 male (ISO 7-1)

Pressure Rating

0 to 250 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

CE; EAC; UL Recognized; RoHS

HS Code

9026.20
