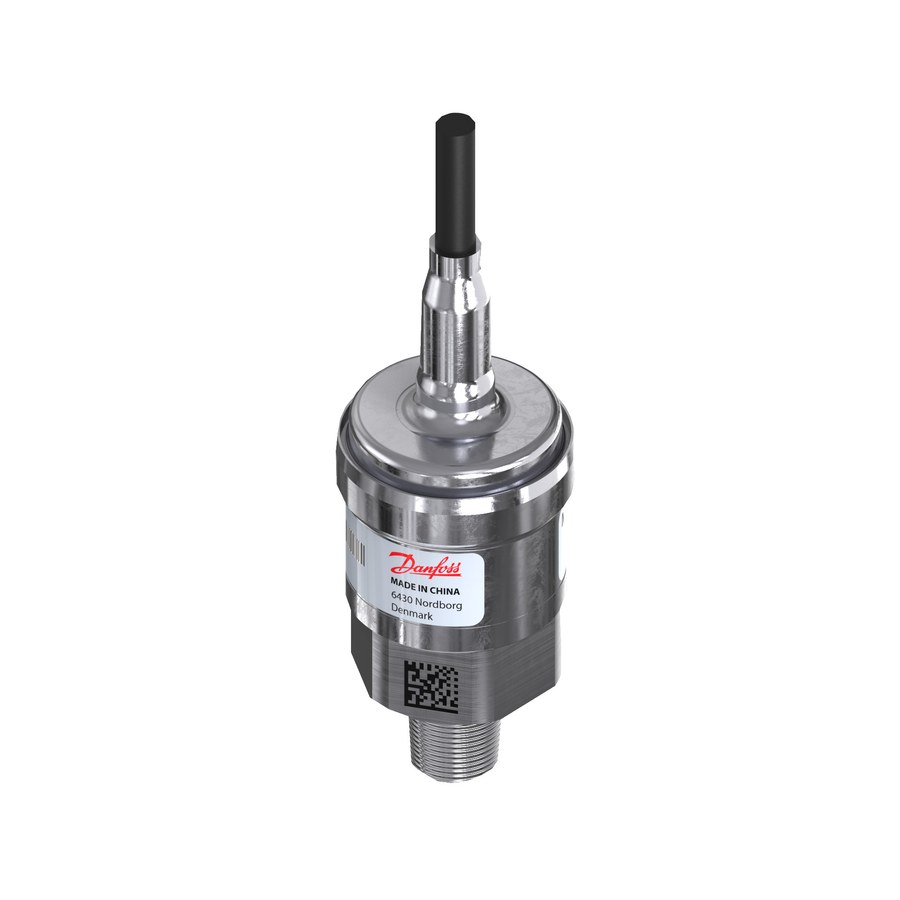

Danfoss MBS 3000 Pressure Transmitter 0 to 3.45 bar Cable NPT

Danfoss MBS 3000 general-purpose pressure transmitter. Range 0 to 3.45 bar (0 to 50 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. 1/4-18 NPT male port; screened cable outlet (IP67). EAN 5702428896597.

Type

MBS 3000

Range

0 to 3.45 bar (0 to 50 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

1/4-18 NPT male (ANSI/ASME B1.20.1)

Electrical connection

Screened cable

Enclosure

IP67

Media temp

-40 to 85°C

EAN

5702428896597

Part number

060G6383

Net weight

0.229 Kilogram

Product group

Sensors

+ supply

Brown

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

79 in

Cable length [m]

2 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428896597

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

20.6 bar

Overload pressure max. [psi]

300 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

3.45 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

50 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3000-5511-A3AC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

1/4-18 NPT male (ANSI/ASME B1.20.1)

Pressure Rating

0 to 3.45 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP67

Classification / Approval

ATEX II 3G Ex ec IIC T4 Gc; CE; EAC; UL Recognized; RoHS

HS Code

9026.20
