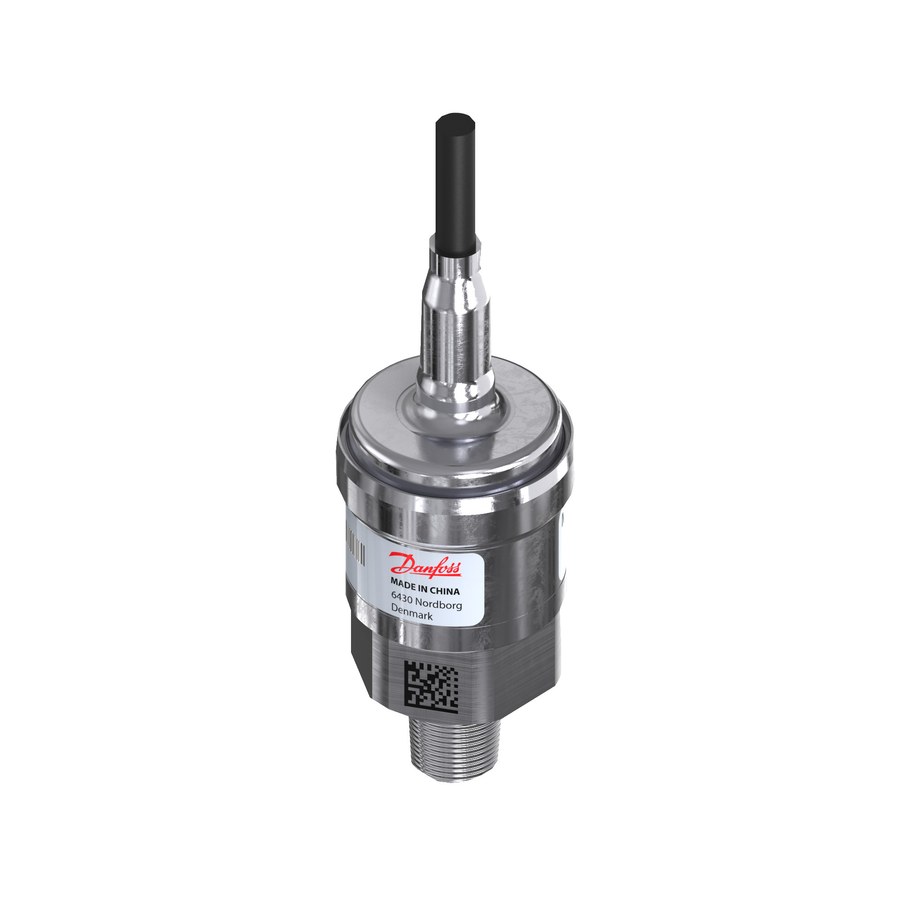

Danfoss MBS 3000 Pressure Transmitter 0 to 13.8 bar Cable NPT (060G6382)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 general-purpose pressure transmitter. Range 0 to 13.8 bar (0 to 200 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. 1/4-18 NPT male port; screened cable outlet (IP67). EAN 5702428896580. P/N 060G6382.
Specifications
- Part number
- 060G6382
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 13.8 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP67
- Thread standard
- 1/4-18 NPT male (ANSI/ASME B1.20.1)
Compatibility
MBS 3000 with 1/4-18 NPT port and integral screened cable; North American / IP67 pressure sensing.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
