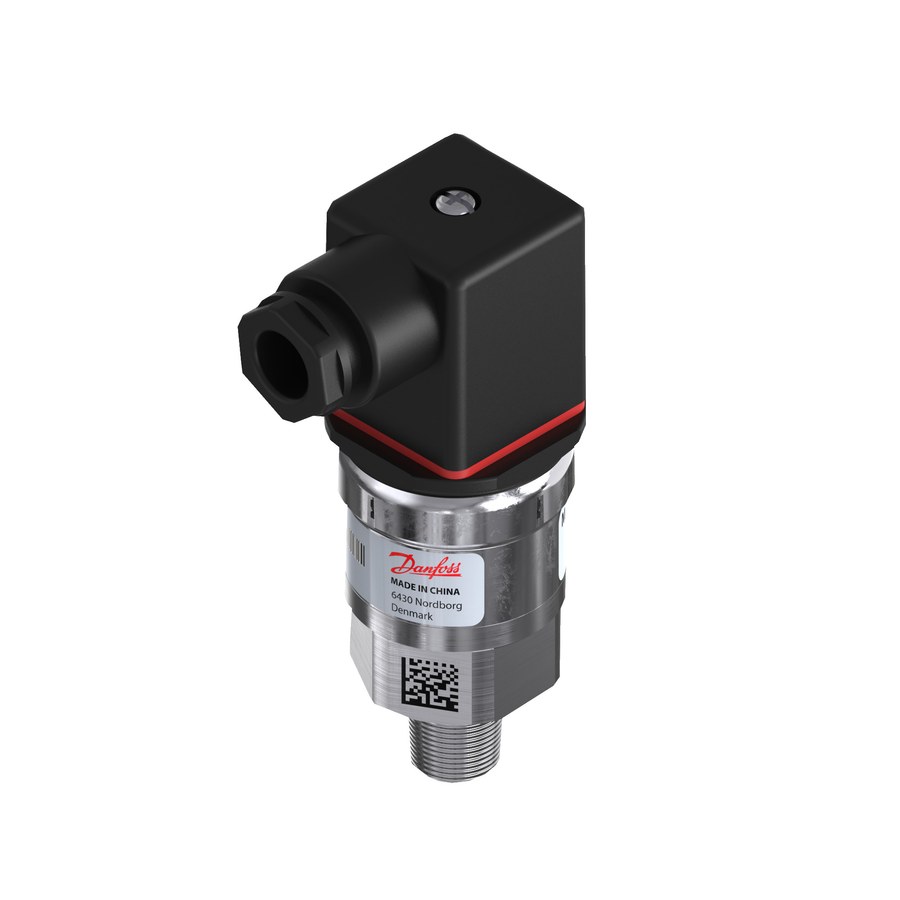

Danfoss MBS 3350 Pressure Transmitter 0 to 10 bar NPT (060G6346)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3350 heavy-duty pressure transmitter. Range 0 to 10 bar (0 to 145 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. 1/4-18 NPT port; angular connector Pg 9 (EN 175301-803-A). Spec key MBS 3350-2011-A1AC04-0. EAN 5702428899451. P/N 060G6346.
Specifications
- Part number
- 060G6346
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- 1/4-18 NPT (ANSI/ASME B1.20.1)
Compatibility
MBS 3350 with 1/4-18 NPT port and angular Pg 9 connector; heavy-duty/washdown pressure sensing.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
