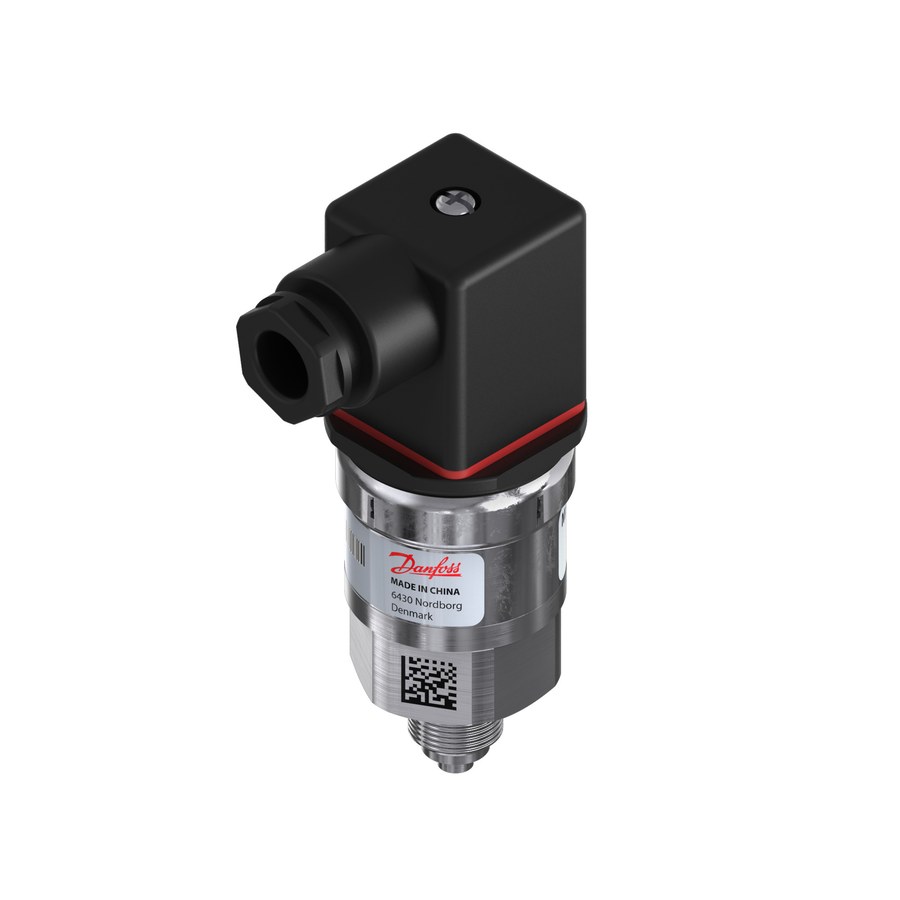

Danfoss MBS 3000 Pressure Transmitter -0.5 to 0.5 bar Compound (060G6358)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 low-range compound pressure transmitter. Range -0.5 to 0.5 bar (-7.25 to 7.25 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male EN 837 port; angular connector Pg 9 (EN 175301-803-A). Spec key MBS 3000-CU11-A1AB04-0. EAN 5702428888332. P/N 060G6358.
Specifications
- Part number
- 060G6358
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -0.5 to 0.5 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- G 1/4 male (EN 837)
Compatibility
MBS 3000 low-range compound transmitter (-0.5 to +0.5 bar) with G 1/4 EN 837 male port; for low differential/vacuum-crossing measurement.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
