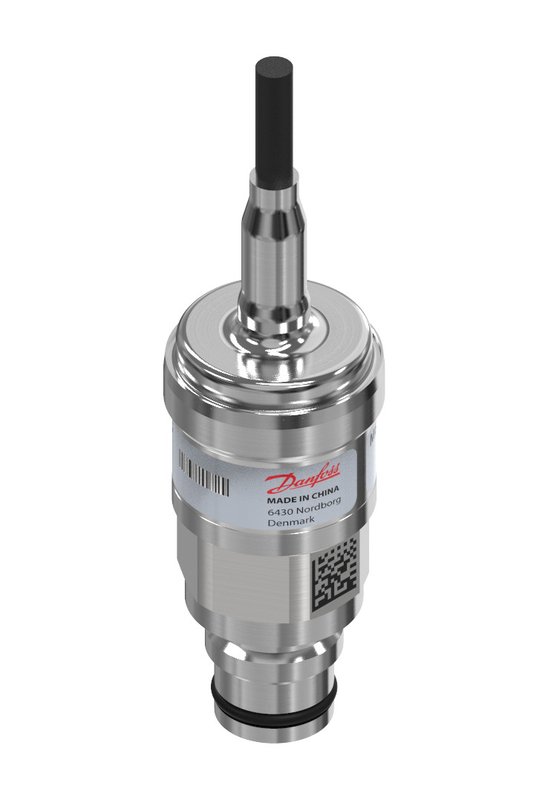

Danfoss MBS 4010 Pressure Transmitter 0 to 13.8 bar Flush Diaphragm

Danfoss MBS 4010 flush-diaphragm pressure transmitter for heating and viscous media. Range 0 to 13.8 bar (0 to 200 psi), 4-20 mA 2-wire output, AISI 316L wetted parts, flush front diaphragm. G 1 male port (ISO 228-1); Amphenol PT/451 6-pin connector (MIL-C-26482). Spec key MBS 4010-6231-D8CB11-2. EAN 5702428910095.

Type

MBS 4010 (flush diaphragm)

Range

0 to 13.8 bar (0 to 200 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel, flush front diaphragm

Pressure connection

G 1 (ISO 228-1)

Electrical connection

Amphenol PT/451 6-pin, MIL-C-26482

Enclosure

IP65

Media temp

-40 to 85°C

Spec key

MBS 4010-6231-D8CB11-2

EAN

5702428910095

Part number

060G6357

Net weight

0.364 Kilogram

Product group

Sensors

+ supply

Pin A

- common

Pin B

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

6 pin

Electrical connection standard

MIL-C-26482

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

Yes

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428910095

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

27 bar

Pressure connection HEX [mm]

41 mm

Pressure connection size

1

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

13.8 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

200 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 4010-6231-D8CB11-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1 (ISO 228-1)

Pressure Rating

0 to 13.8 bar

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

CE; EAC; RoHS

HS Code

9026.20
