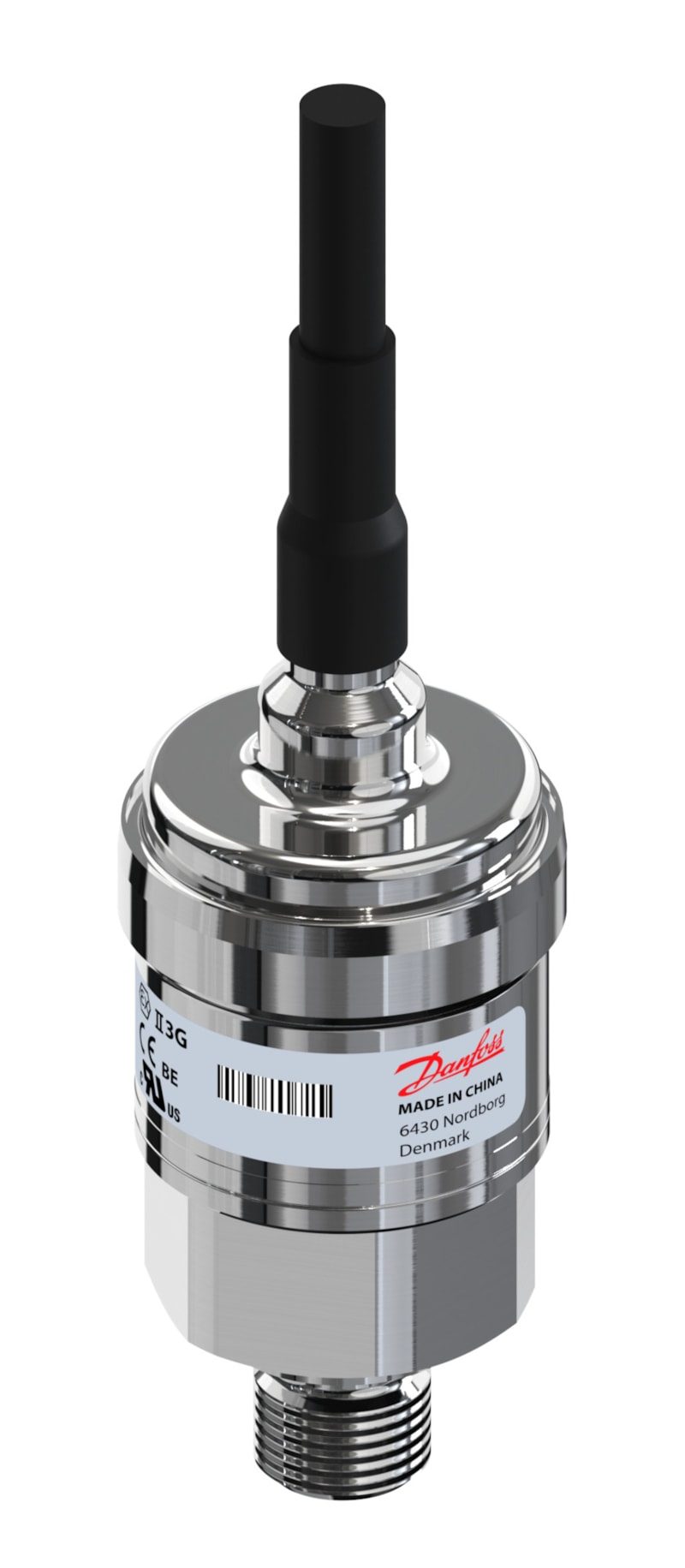

Danfoss MBS 3300 Pressure Transmitter 0 to 6 bar Cable (060G6328)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 compact pressure transmitter with integral cable. Range 0 to 6 bar (0 to 87 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E (DIN 3852-E) port; screened 2 m cable (IP67). Spec key MBS 3300-1811-F4GB04-2. EAN 5702428882620. P/N 060G6328.
Specifications
- Part number
- 060G6328
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 6 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP67
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
Compact MBS 3300 with G 1/4 Form E port and screened 2 m cable-out (IP67) for washdown/marine service.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
