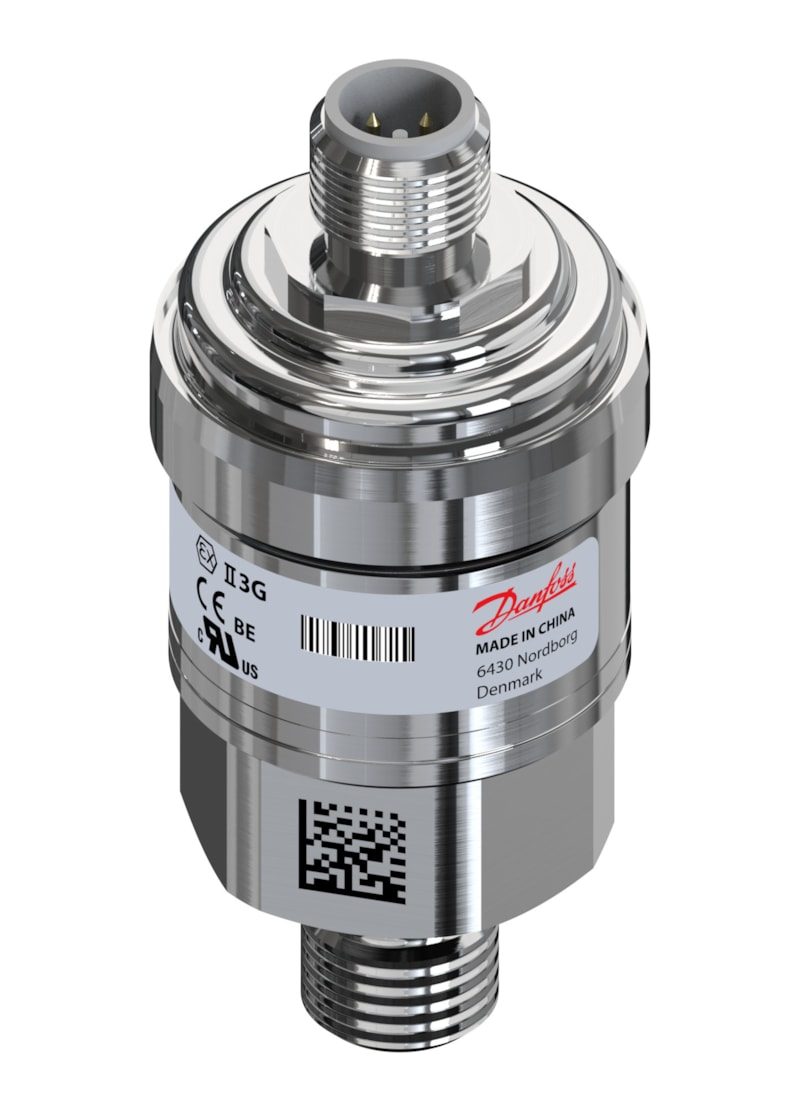

Danfoss MBS 3000 Pressure Transmitter 0 to 16 bar M12 (060G6334)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 general-purpose pressure transmitter. Range 0 to 16 bar (0 to 232 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E (DIN 3852-E) port; M12 x 1 4-pin connector (IEC 61076-2-101, IP67). Spec key MBS 3000-2231-E3GB04-2. EAN 5702428882224. P/N 060G6334.
Specifications
- Part number
- 060G6334
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 16 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP67
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3000 with G 1/4 Form E port and M12 x 1 4-pin connector (IP67); mobile/OEM installation option.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
