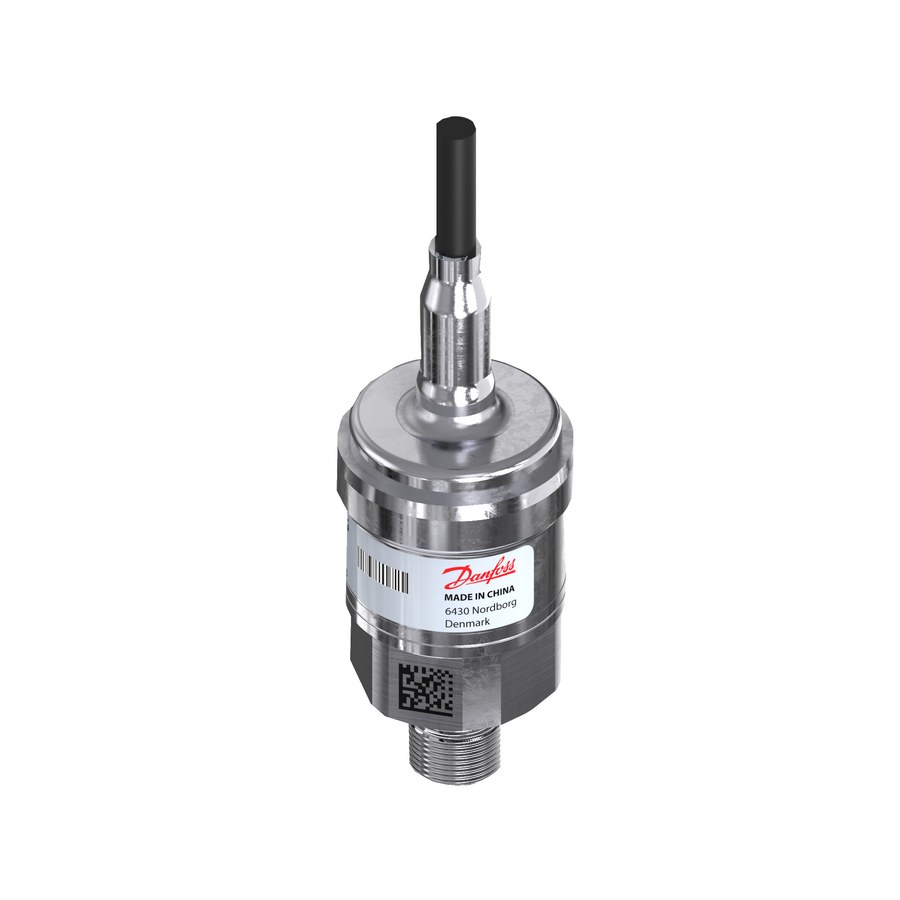

Danfoss MBS 3000 Pressure Transmitter 0 to 16 bar 4-20 mA

Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6188. Measuring range 0 to 16 bar (0 to 232 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E / ISO 1179-2, Form E) pressure connection; Screened cable, 2 m. MBS 3000 general-purpose transmitter, 0 to 16 bar, G 1/4 Form E port and 2 m cable; typical accuracy +/-0.5% FS. EAN 5702428813716.

Type

MBS 3000

Range

0 to 16 bar (0 to 232 psi)

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Electrical connection

Screened cable, 2 m

Reference

gauge (relative)

Enclosure

IP67

Media temp

-40 to 85°C

Approvals

ATEX, CE, UL Recognized (C UL US)

EAN

5702428813716

Part number

060G6188

Net weight

0.23 Kilogram

Product group

Sensors

+ supply

Brown

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

79 in

Cable length [m]

2 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428813716

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

96 bar

Overload pressure max. [psi]

1392 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

16 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

232 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3000-2231-A3GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

DIN 3852-E / ISO 1179-2

Pressure Rating

0 to 16 bar

Temperature Range

-40 to 85°C

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
