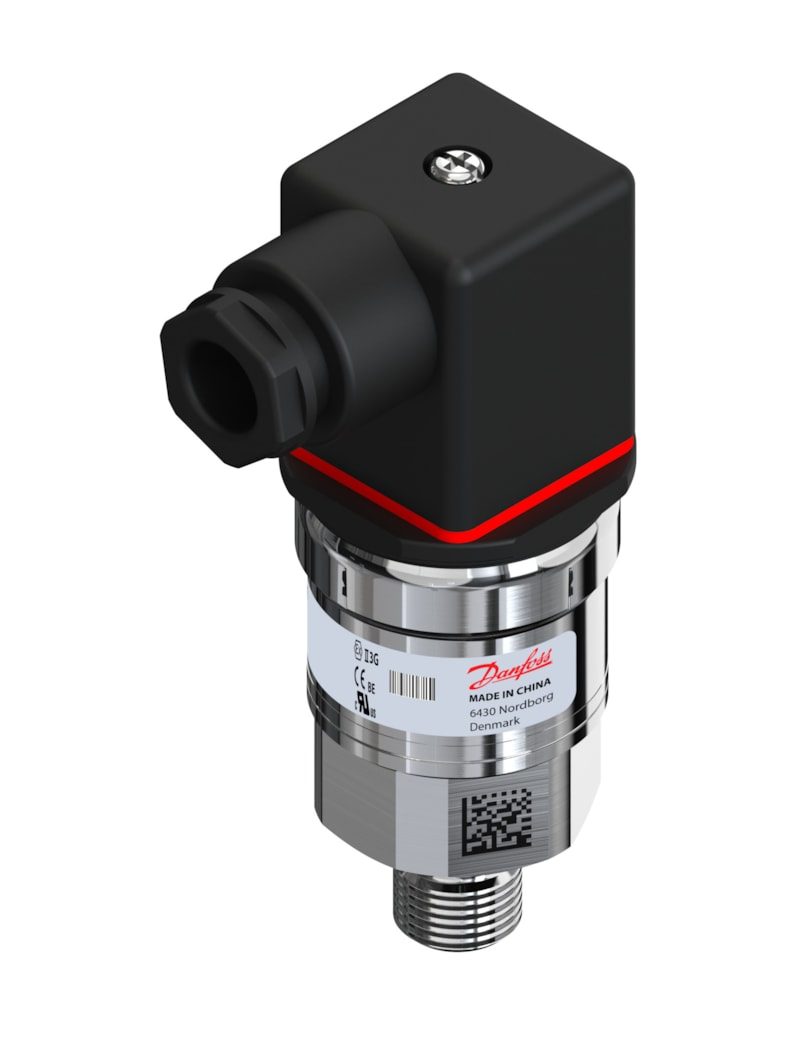

Danfoss MBS 3050 Pressure Transmitter 0 to 350 bar 4-20 mA (060G6189)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6189. Measuring range 0 to 350 bar (0 to 5075 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E / ISO 1179-2, Form E) pressure connection; Angular connector Pg 9, EN 175301-803-A. MBS 3050 transmitter without pulse snubber, 0 to 350 bar, G 1/4 Form E port and angular Pg 9 connector. EAN 5702428815307. P/N 060G6189.
Specifications
- Part number
- 060G6189
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 350 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP65
- Thread standard
- DIN 3852-E / ISO 1179-2
Compatibility
G 1/4 Form E (DIN 3852-E) sealing port; two-wire current loop 9-32 V DC. MBS 3050 omits the internal pulse snubber of MBS 3000.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
