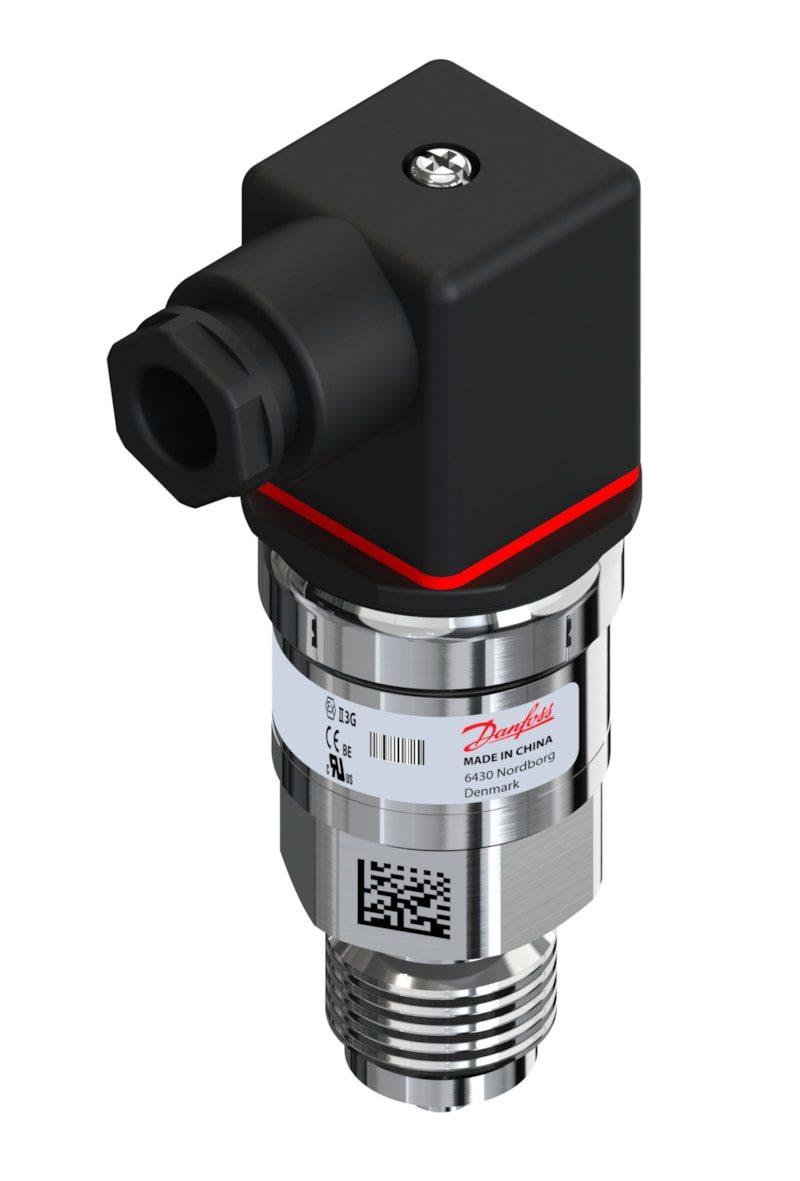

Danfoss MBS 33 Pressure Transmitter 0 to 10 bar 0-10 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 33 pressure transmitter, genuine OEM code 060G2085. Measuring range 0 to 10 bar (0 to 145 psi), 0-10 V (voltage output), 316L stainless steel wetted parts. G 1/2 male (EN 837) pressure connection; Angular connector Pg 9, EN 175301-803-A. MBS 33 compact OEM pressure transmitter with 0-10 V voltage output, G 1/2 EN 837 male gauge port and angular Pg 9 connector. EAN 5702423042685.
Technical Specifications
- Type
- MBS 33
- Range
- 0 to 10 bar (0 to 145 psi)
- Output
- 0-10 V (voltage output)
- Supply
- 15-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/2 male (EN 837)
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Reference
- gauge (relative)
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- Approvals
- ATEX, CE
- EAN
- 5702423042685
- Part number
- 060G2085
- Net weight
- 0.187 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 11.5
- In scope of WEEE
- Yes
- International Article Number
- 5702423042685
- Intrinsically safe
- No
- Low Clipping level
- 0
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Voltage
- Output signal [V] [max]
- 10 V
- Output signal [V] [min]
- 0 V
- Overload pressure max. [bar]
- 20 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 10 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 145 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 33-2015-A1AB08-0
- Supply current max. [mA]
- 8 mA
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 15 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- EN 837
- Pressure Rating
- 0 to 10 bar
- Temperature Range
- -40 to 85°C
- IP Rating
- IP65
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
0-10 V output, 15-32 V DC supply. G 1/2 EN 837 process port; gauge (relative) reference. Note: contains lead (REACH candidate list) in the electrical solder.
