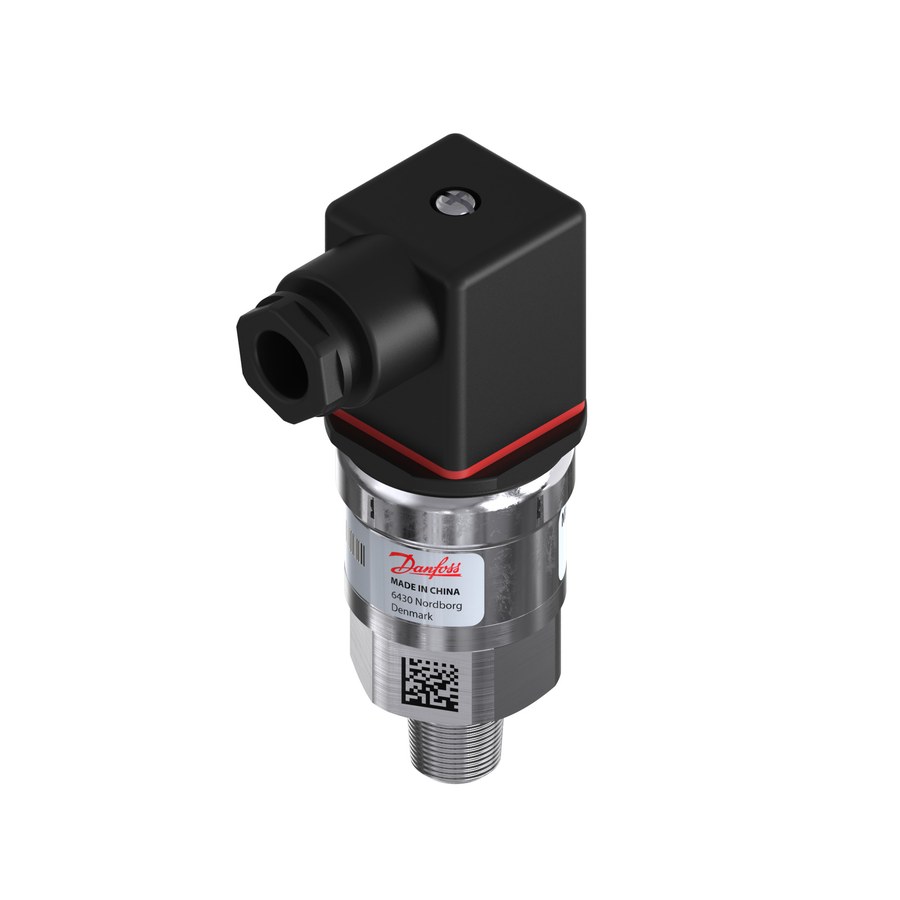

Danfoss AKS 32 Pressure Transmitter -1 to 12 bar 0-10 V (060G2089)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter, genuine OEM code 060G2089. Measuring range -1 to 12 bar (-14.5 to 174 psi), 0-10 V (voltage output), 316L stainless steel wetted parts. 1/4-18 NPT (male) pressure connection; Angular connector Pg 9, EN 175301-803-A. AKS 32 voltage-output (0-10 V) transmitter, 1/4-18 NPT male port, angular Pg 9; -1 to 12 bar compound range. EAN 5702422128199. P/N 060G2089.
Specifications
- Part number
- 060G2089
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 12 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP65
- Thread standard
- ANSI/ASME B1.20.1
Compatibility
0-10 V output, 15-32 V DC supply; NPT 1/4-18 process port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
