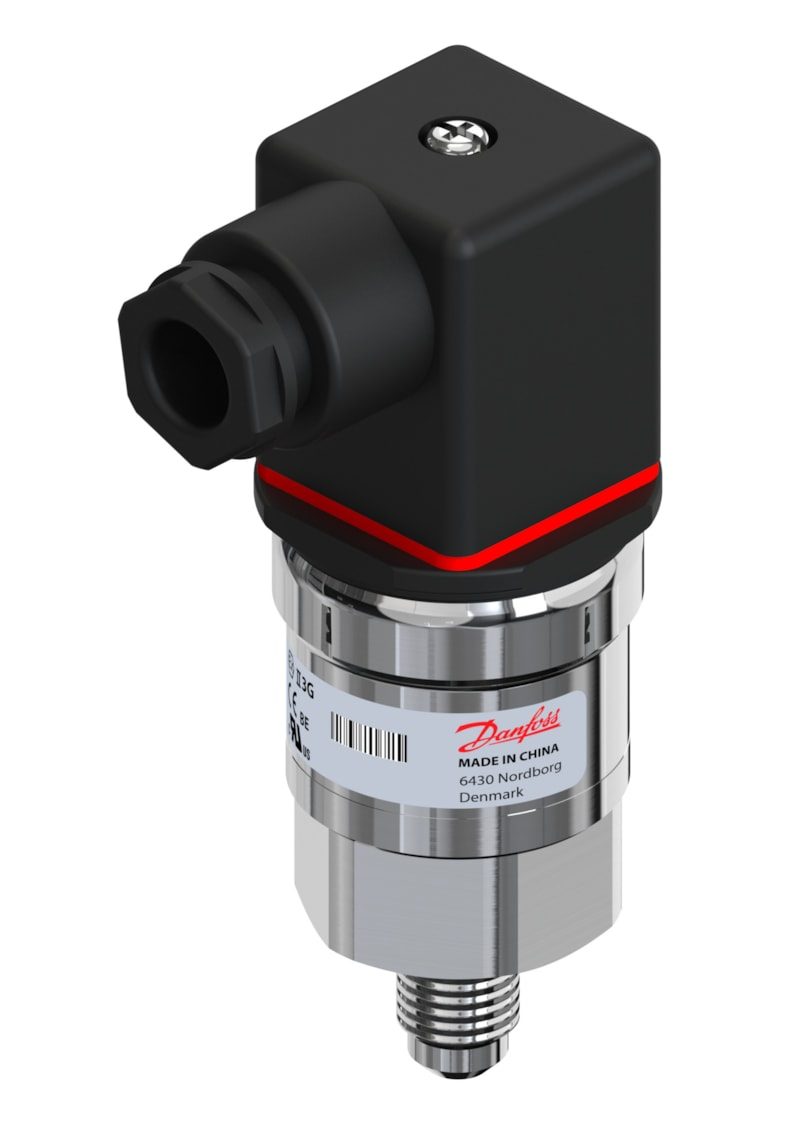

Danfoss AKS 32 Pressure Transmitter -1 to 12 bar 1-5 V (060G2069)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter, genuine OEM code 060G2069. Measuring range -1 to 12 bar (-14.5 to 174 psi), 1-5 V (voltage output), 316L stainless steel wetted parts. 7/16-20 UNF flare 1/4 in (male) pressure connection; Angular connector Pg 9, EN 175301-803-A. AKS 32 voltage-output (1-5 V) transmitter, 7/16-20 UNF flare, angular Pg 9; -1 to 12 bar compound range. EAN 5702422079392. P/N 060G2069.
Specifications
- Part number
- 060G2069
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 12 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP65
- Thread standard
- SAE J513 flare
Compatibility
1-5 V voltage output; flare 1/4 in service-valve port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
