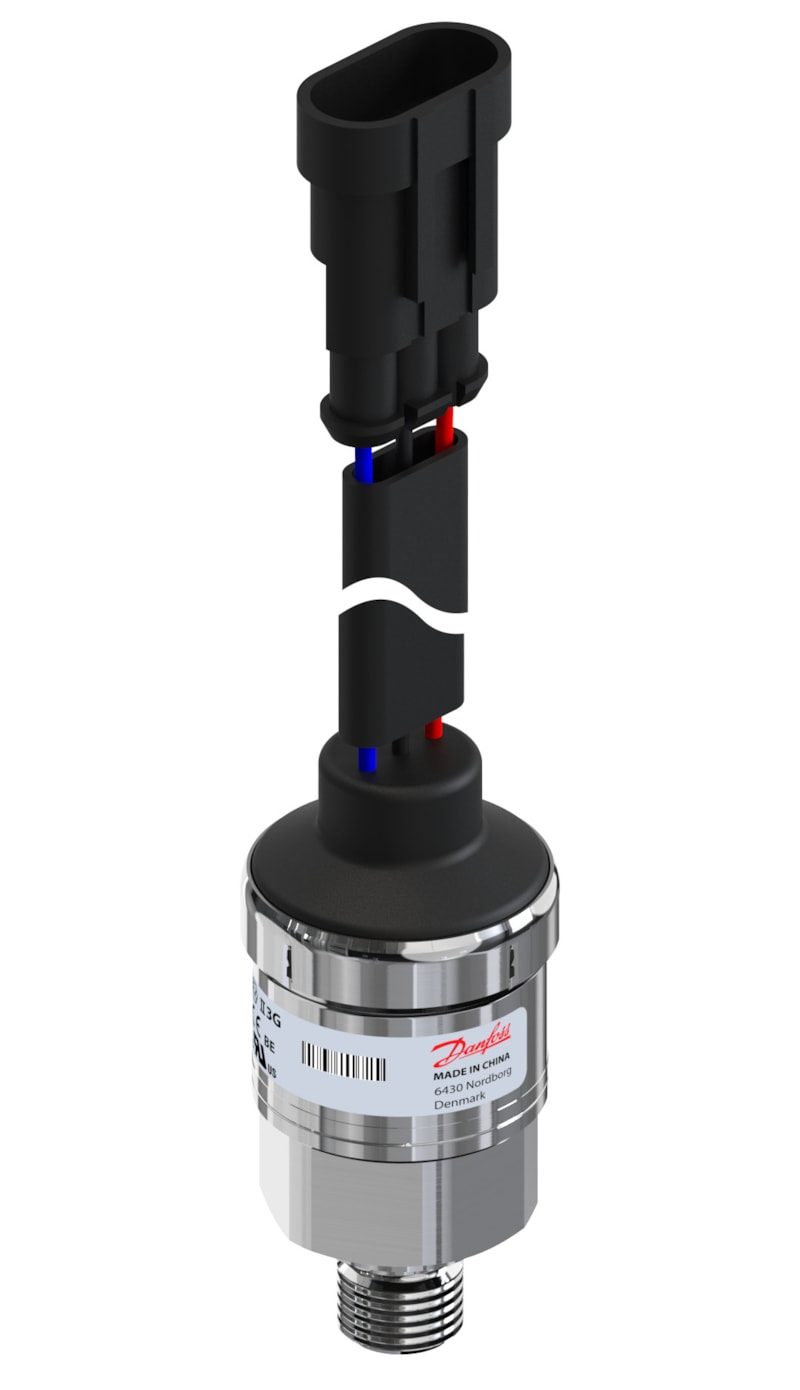

Danfoss MBS 3200 Pressure Transmitter 0 to 6 bar AMP SuperSeal
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 heavy-duty pressure transmitter for mobile and off-highway use with high vibration and shock. Measuring range 0 to 6 bar (0 to 87 psi), 4-20 mA current output, AISI 316L stainless steel wetted parts. Pressure connection G 1/4 (male, EN 837); electrical connection AMP SuperSeal 1.5 3-pin with flying leads. Supply 9-32 V DC; medium temperature to 125°C. Approvals: CE, UL Recognized (C UL US). EAN 5702428876858.
Technical Specifications
- Type
- MBS 3200 (heavy-duty / mobile)
- Range
- 0 to 6 bar (0 to 87 psi)
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 (male, EN 837)
- Electrical connection
- AMP SuperSeal 1.5, 3-pin, flying leads
- Overload
- 36 bar
- Enclosure
- IP67
- Media temp
- -40 to 125°C
- Approvals
- CE, UL Recognized (C UL US)
- EAN
- 5702428876858
- Part number
- 060G6307
- Net weight
- 0.132 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Flying leads
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428876858
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 36 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 6 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 87 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3200-1831-A8AB04-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- EN 837
- Pressure Rating
- 0 to 6 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 is the vibration/shock-rated body for mobile hydraulics; AMP SuperSeal connector.
