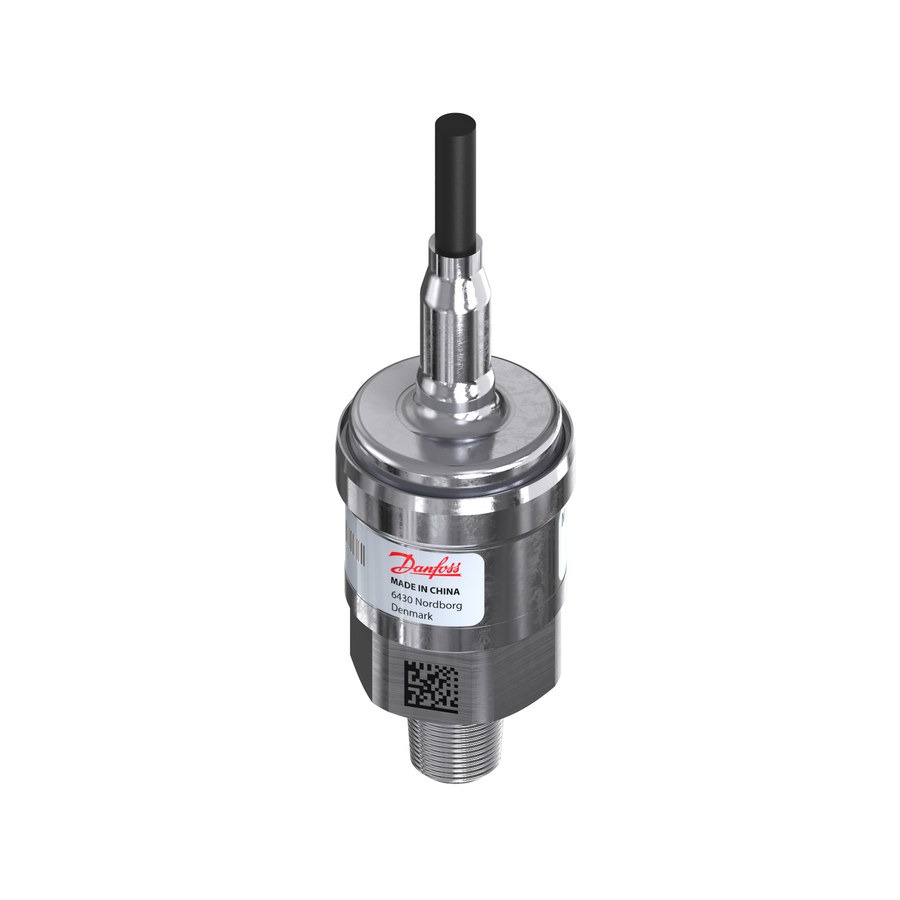

Danfoss AKS 33 Pressure Transmitter 0 to 30 bar 4-20 mA (060G2059)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 33 pressure transmitter, genuine OEM code 060G2059. Measuring range 0 to 30 bar (0 to 435 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. 1/4-18 NPT (male) pressure connection; Screened cable, 5 m. AKS 33 is the 4-20 mA current-output refrigeration transmitter; 5 m cable outlet for panel or wall termination. EAN 5702422091059. P/N 060G2059.
Specifications
- Part number
- 060G2059
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 30 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP67
- Thread standard
- ANSI/ASME B1.20.1
Compatibility
Refrigeration/HVAC service; NPT 1/4-18 process port. Two-wire current loop, supply 9-32 V DC.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
