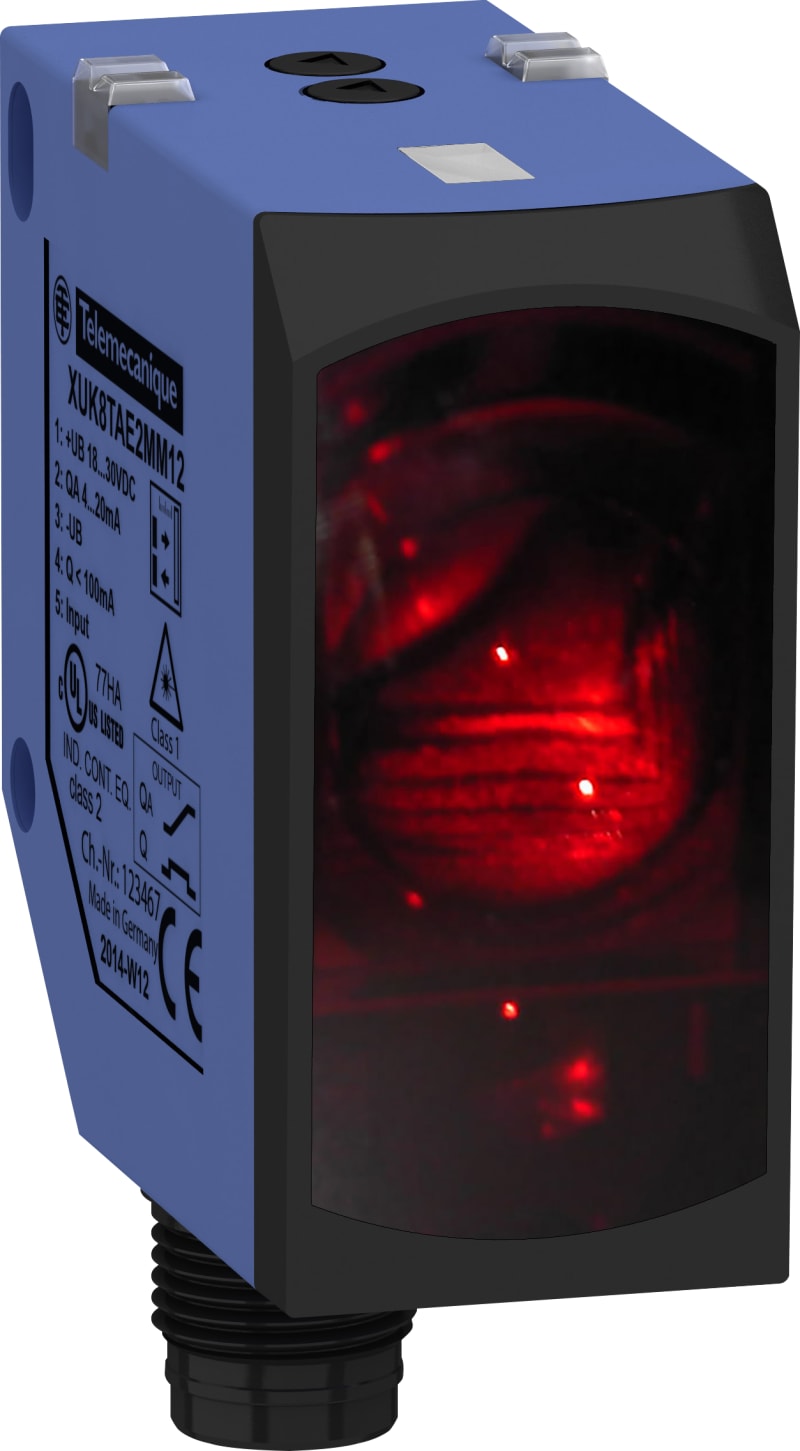

Telemecanique XUK8TAE2MM12 Photoelectric Distance Sensor, 0–1.5 m, 4–20 mA, M12 Connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUK8TAE2MM12 photoelectric distance sensor (time of flight), adjustment range 0–1500 mm, 1 switching output plus 4–20 mA analogue output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUK8TAE2MM12
- EAN / GTIN
- 3666916037478
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Adjustment range
- 0–1500 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 5000 mm
- Max. switching distance
- 1500 mm
- Max. output current
- 60 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Construction type housing
- Cuboid
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -40–80 °C
- Response time
- 1.2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- With monitoring function downstream switching devices
- No
- Laser protection class
- Class 1
- Type of light
- Laser diode, infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Operating distance
- 0–1500 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916037478
- SAP 1000705110
- Code 8321049
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKMR54D2 Limit Switch, Metal Cross Lever, Metal Body, PG cable entry
Telemecanique
Telemecanique ZCMC21L2 Contact Body for XCM Limit Switches, 1 NO + 1 NC, snap action, 2 m cable
Telemecanique
Telemecanique ZB6YA001 Mounting Body for Recessed ZB6 Contact Blocks
Telemecanique
Telemecanique XSAV1562515 Rotation Monitor (Under-Speed Detector) M30, 120–3000 rpm
Telemecanique
Telemecanique Modular 3-Phase voltage control relay, 5 A, 2 CO, 220…480 V AC RM35UB330
Telemecanique
Telemecanique motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO RM35TM250MW
Telemecanique
Telemecanique XZCC43FCP40B Field-Wireable Connector, Female, Angled, Metal
Telemecanique
Telemecanique XCSDMP5012 Magnetic Safety Switch, 2 NO + 1 NC, 2 m cable
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUK8TAE2MM12?
- XUK8TAE2MM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUK8TAE2MM12.
- What is the HS code for XUK8TAE2MM12?
- The customs tariff (HS) code for XUK8TAE2MM12 is 8536.90.
- Who manufactures XUK8TAE2MM12?
- XUK8TAE2MM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUK8TAE2MM12?
- Yes — the XUK8TAE2MM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUK8TAE2MM12?
- The minimum order quantity is 1.
- Is XUK8TAE2MM12 available?
- Yes — XUK8TAE2MM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
