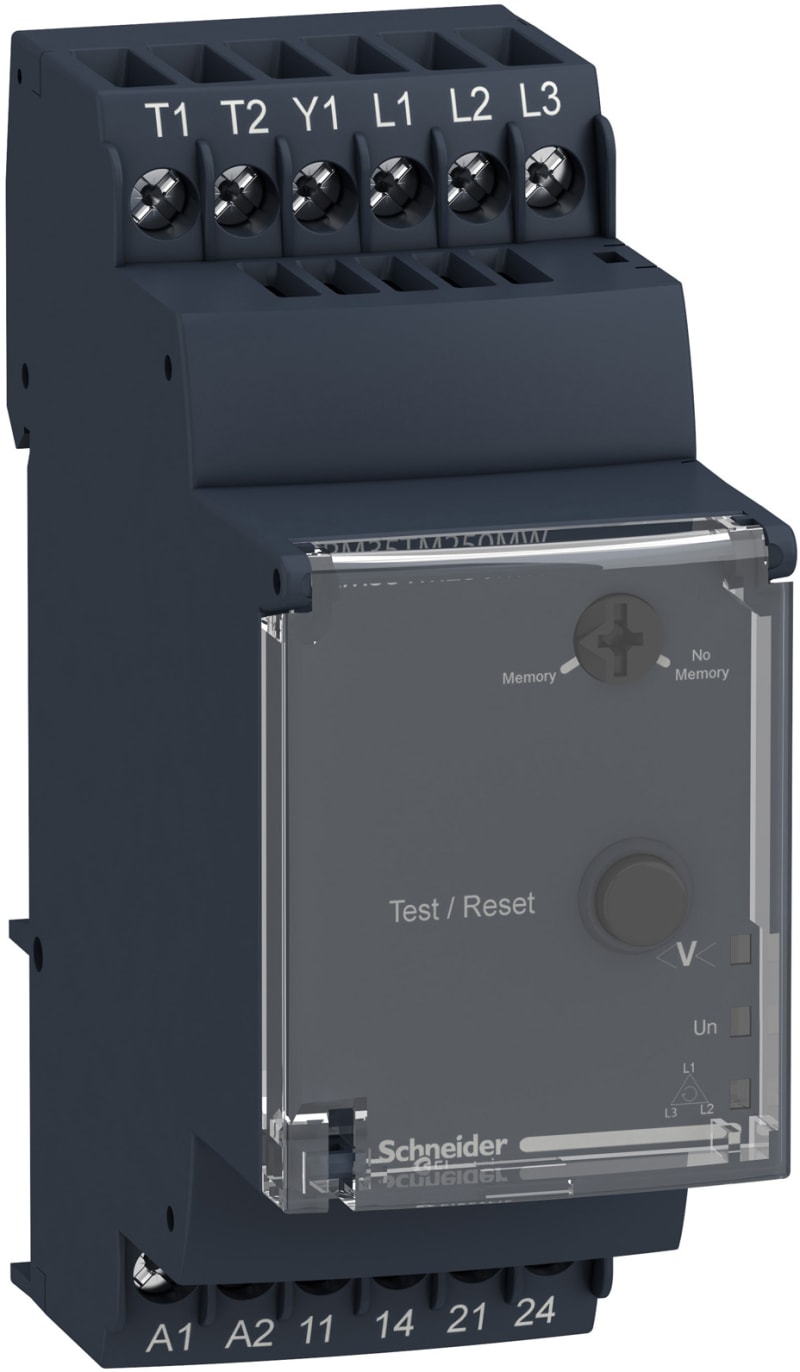

Telemecanique motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO RM35TM250MW

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM35TM250MW EAN / GTIN: 3389119405270 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Motor temperature control relay Relay name: RM35TM Product or component type: Motor temperature control relay Relay monitored parameters: Phase failure detection; Phase sequence; Test/reset button; Motor temperature via PTC probe; Selection (with or without memory) Control type: With test button Contacts type and composition: 2 NO [Uc] control circuit voltage: 24...240 V Product specific application: For 3-phase supply [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC; 20.4…264 V DC Supply frequency: 50/60 Hz +/- 10 % Power consumption in VA: 0…4 VA at 24...240 V AC Measurement range: 208...480 V AC; 15...3100 Ohm Measurement voltage limits: 176…528 V AC Maximum power consumption in W: 0.5 W DC Time delay type: Without Reset time: 10000 ms output Output contacts: 2 NO nominal output current: 5 A Maximum switching voltage: 250 V AC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC; 5 A DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Response time: > 50 ms (input Y1 (contact Y1-T1) and push-button) Control circuit frequency: 50...60 Hz +/- 10 % Resistance across terminals: 602 kOhm Short-circuit current: 0.007 A temperature sensing circuit (T1-T2 terminals short circuited) Maximum resistance: 1500 Ohm for temperature sensor at 20 °C Tripping threshold: 3100 Ohm +/- 10 % for temperature control circuit Reset threshold: 1650 Ohm +/- 10 % for temperature control circuit Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to IEC 61000-6-2 Standards: IEC 60255-6; IEC 60034-11-2 Product certifications: CSA; C-Tick; GOST; UL; GL Marking: CE Directives: 73/23/EEC - low voltage directive; 89/336/EEC - electromagnetic compatibility Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for phase of relay (R2); LED (yellow) for temperature of relay (R1) Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Height: 90 mm; 88.9 mm Width: 35 mm; 17.8 mm Depth: 72 mm; 71.1 mm Product weight: 0.095 kg; 0.10 kg Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Voltage type (supply voltage): AC/DC Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC With detachable clamps: No Number of measuring circuits: 2 Error registration possible: Yes External reset possible: Yes Number of contacts as normally open contact: 2

HS Code

8536.49

• EAN 3389119405270
• SAP 1000257669
• Code 8141782
