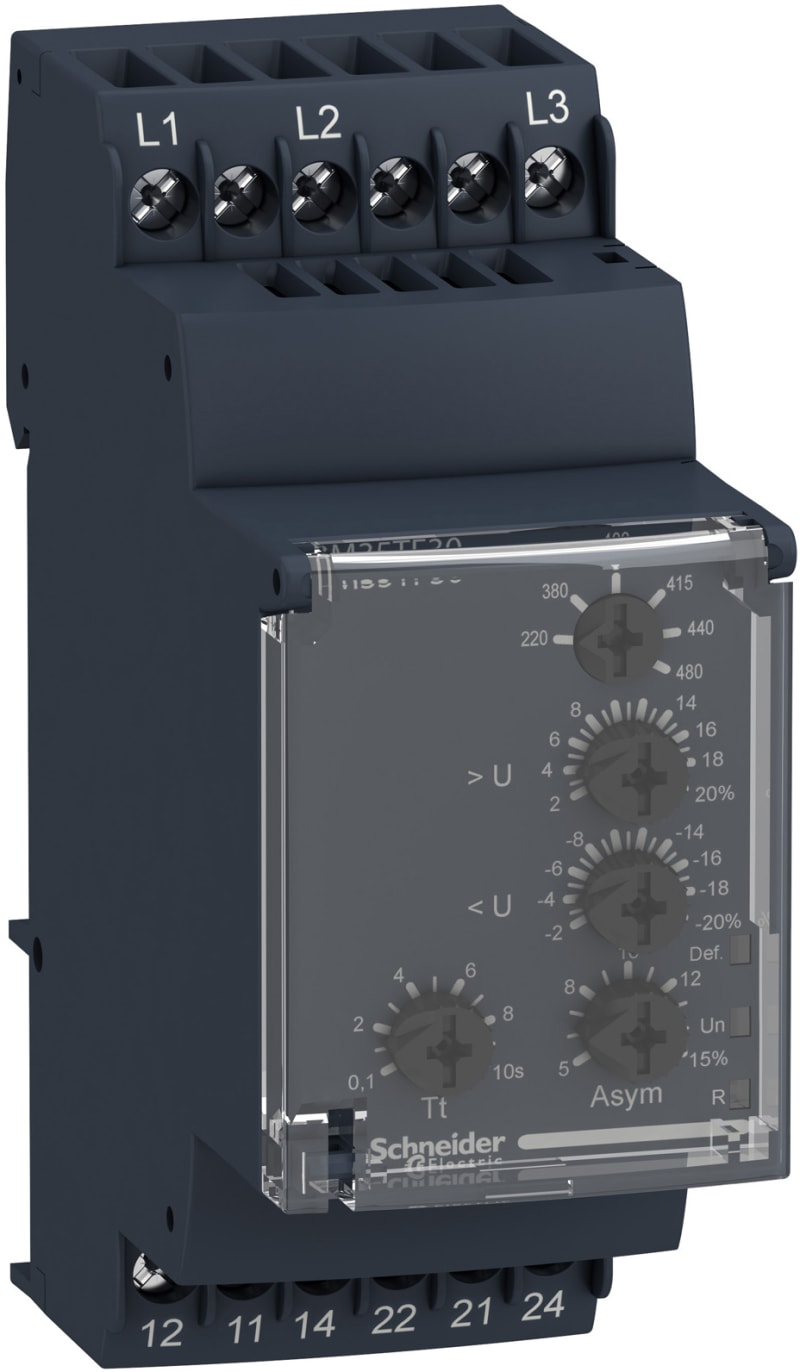

Schneider Electric multifunction phase control relay RM35-T - range 194..528 V AC RM35TF30
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique RM35TF30. The relay detects every fault that can occur in a three-phase system (phase failure, phase-rotation direction, over- and undervoltage).
Technical Specifications
- Manufacturer part number (MPN)
- RM35TF30 EAN / GTIN: 3389119405263 Sales unit: pcs Package quantity: 48 pcs Range of product: Harmony Control Relays Relay type: Multifunction control relay Relay name: RM35TF Product or component type: 3-phase control relay Relay monitored parameters: Undervoltage and overvoltage in window mode; Phase sequence; Phase failure detection; Asymmetry Control type: Without test button Contacts type and composition: 2 C/O [Uc] control circuit voltage: 220...480 V Product specific application: For 3-phase supply [Us] rated supply voltage: self-powered Supply voltage limits: 194…528 V AC, 3 phases Supply frequency: 50/60 Hz +/- 10 % Power consumption in VA: 0…22 VA at 400 V AC 50 Hz Measurement range: 220...480 V AC Measurement voltage limits: 176…528 V AC Voltage detection threshold: < 194 V Maximum measuring cycle: 140 ms measurement cycle as true rms value Threshold adjustment voltage: 2...20 % of Un selected; -12...-2 % in the range 220 V AC; +2...+10 % in t
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3389119405263
- SAP 1000257668
- Code 8141772
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12FDM50B Field-Wireable Connector, M12, Female, Straight, 5-pin, Metal
Telemecanique
Telemecanique motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO RM35TM50MW
Telemecanique

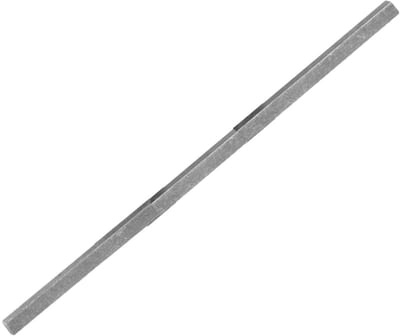

Telemecanique XCRZ04 Limit Switch Square Rod 300 mm
Telemecanique

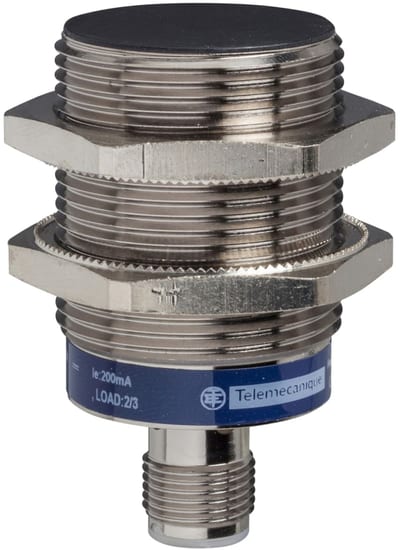

Telemecanique XS130B3PAM12 Inductive Proximity Sensor Ø30 mm, Threaded, PNP NO, M12 connector
Telemecanique
Telemecanique ZBVB17 LED Module, White, 24 V, PCB Mounting, for Harmony Pilot Lights
Telemecanique

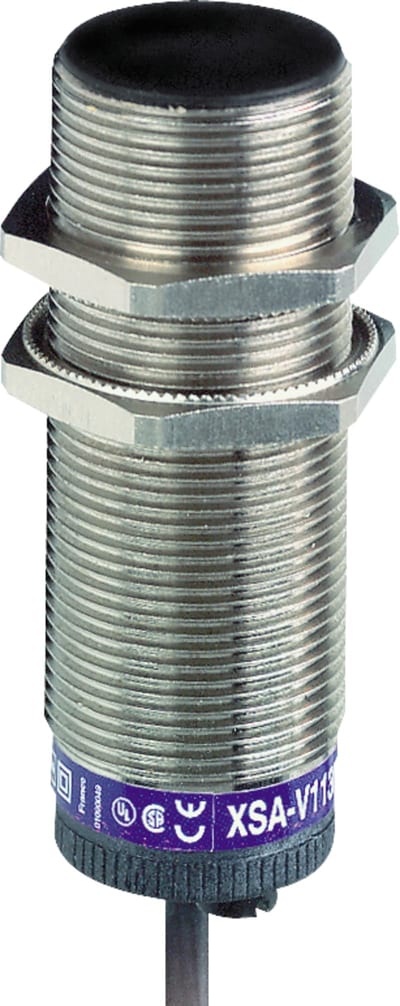

Telemecanique XSAV11373L05 Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm, PNP, 5 m Cable
Telemecanique
Telemecanique Modular 1-Phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC RM17UBE16
Telemecanique

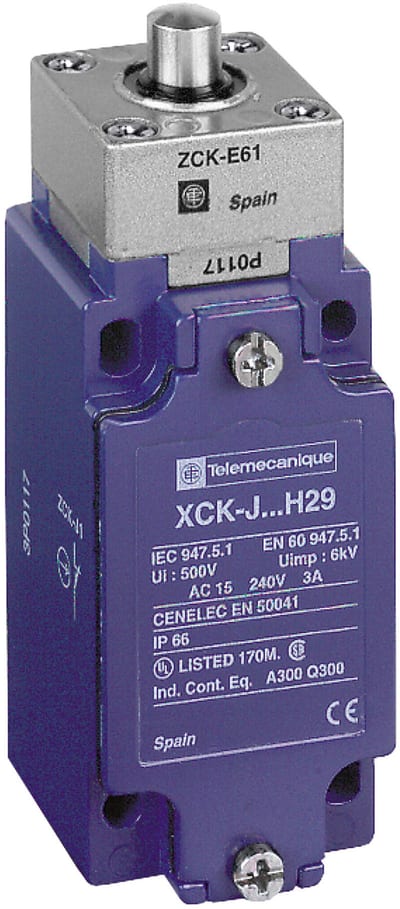

Telemecanique XCKJ161 Limit Switch, Metal Body, 1 NO + 1 NC
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy RM35TF30?
- RM35TF30 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is RM35TF30.
- What is the HS code for RM35TF30?
- The customs tariff (HS) code for RM35TF30 is 8536.49.
- Who manufactures RM35TF30?
- RM35TF30 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for RM35TF30?
- Yes — the RM35TF30 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for RM35TF30?
- The minimum order quantity is 1.
- Is RM35TF30 available?
- Yes — RM35TF30 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
