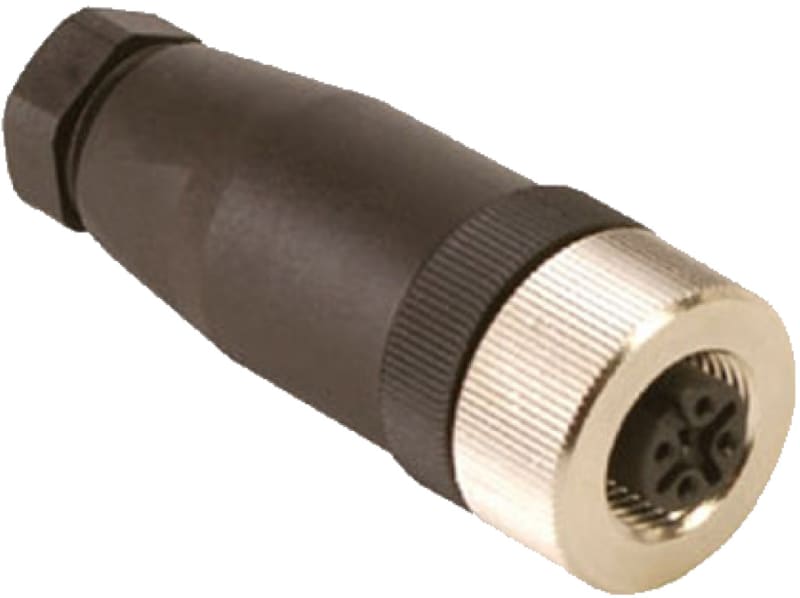

Telemecanique XZCC12FDM50B Field-Wireable Connector, M12, Female, Straight, 5-pin, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC12FDM50B field-wireable (user-attachable) connector, M12 female straight, 5-pin, metal body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC12FDM50B
- EAN / GTIN
- 3666916070024
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M12
- Contact type
- Pin
- Diameter connector
- 12 mm
- Thread size M
- 12
- Number of data contacts
- 5
- For cable outer diameter
- 7 mm
- Type of housing
- Straight
- Rated current In
- 3 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 30 V
- Connectable conductor cross section solid-core
- 0–75 mm²
- Connectable conductor cross section multi-wired
- 0–75 mm²
- Type of electric connection
- Screw connection
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3666916070024
- SAP 1000263770
- Code 8217529
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO RM35TM50MW
Telemecanique
Telemecanique XCRZ04 Limit Switch Square Rod 300 mm
Telemecanique
Telemecanique XS130B3PAM12 Inductive Proximity Sensor Ø30 mm, Threaded, PNP NO, M12 connector
Telemecanique
Telemecanique ZBVB17 LED Module, White, 24 V, PCB Mounting, for Harmony Pilot Lights
Telemecanique
Telemecanique XSAV11373L05 Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm, PNP, 5 m Cable
Telemecanique
Telemecanique Modular 1-Phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC RM17UBE16
Telemecanique
Telemecanique XCKJ161 Limit Switch, Metal Body, 1 NO + 1 NC
Telemecanique
Telemecanique XZCC20FDM30B Field-Wireable Connector, 1/2"-20 UNF, Female, Straight, 3-pin, Metal
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XZCC12FDM50B?
- XZCC12FDM50B can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XZCC12FDM50B.
- What is the HS code for XZCC12FDM50B?
- The customs tariff (HS) code for XZCC12FDM50B is 8536.69.
- Who manufactures XZCC12FDM50B?
- XZCC12FDM50B is a Telemecanique product in the Cables & Wiring range.
- Is a datasheet available for XZCC12FDM50B?
- Yes — the XZCC12FDM50B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XZCC12FDM50B?
- The minimum order quantity is 1.
- Is XZCC12FDM50B available?
- Yes — XZCC12FDM50B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
