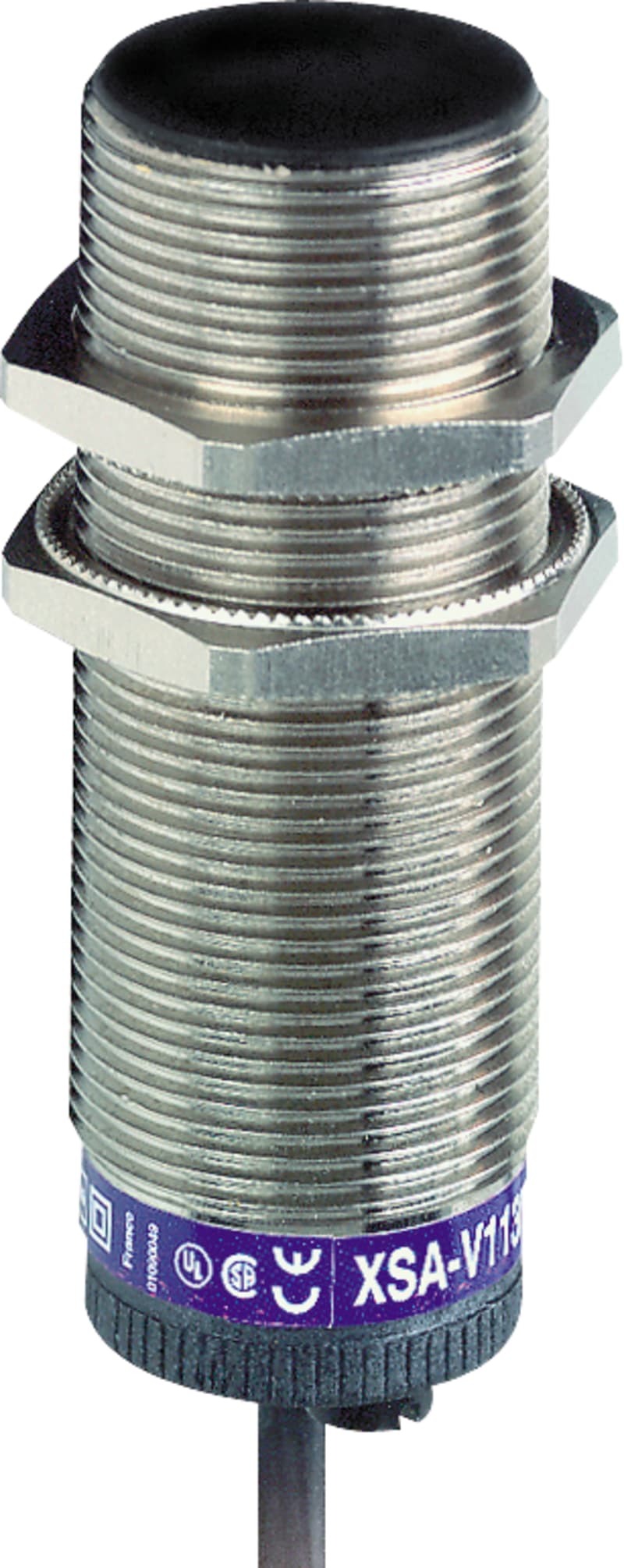

Telemecanique XSAV1562515 Rotation Monitor (Under-Speed Detector) M30, 120–3000 rpm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XSAV1562515 inductive rotation monitor (under-speed detector), M30 body, setting range 120–3000 pulses/min.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV1562515
- EAN / GTIN
- 3666916009109
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Height of sensor
- 30 mm
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of electric connection
- Cable radial
- Type of actuation
- Metallic Target
- Construction type housing
- Cylinder, screw-thread
- Cascadable
- No
- SIL according to IEC 61508
- 1
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 1.5 mA
- Supply voltage
- 24–240 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–210 V
- Voltage type
- AC/DC
- Switching frequency
- 800 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009109
- SAP 1000342070
- Code 8998676
