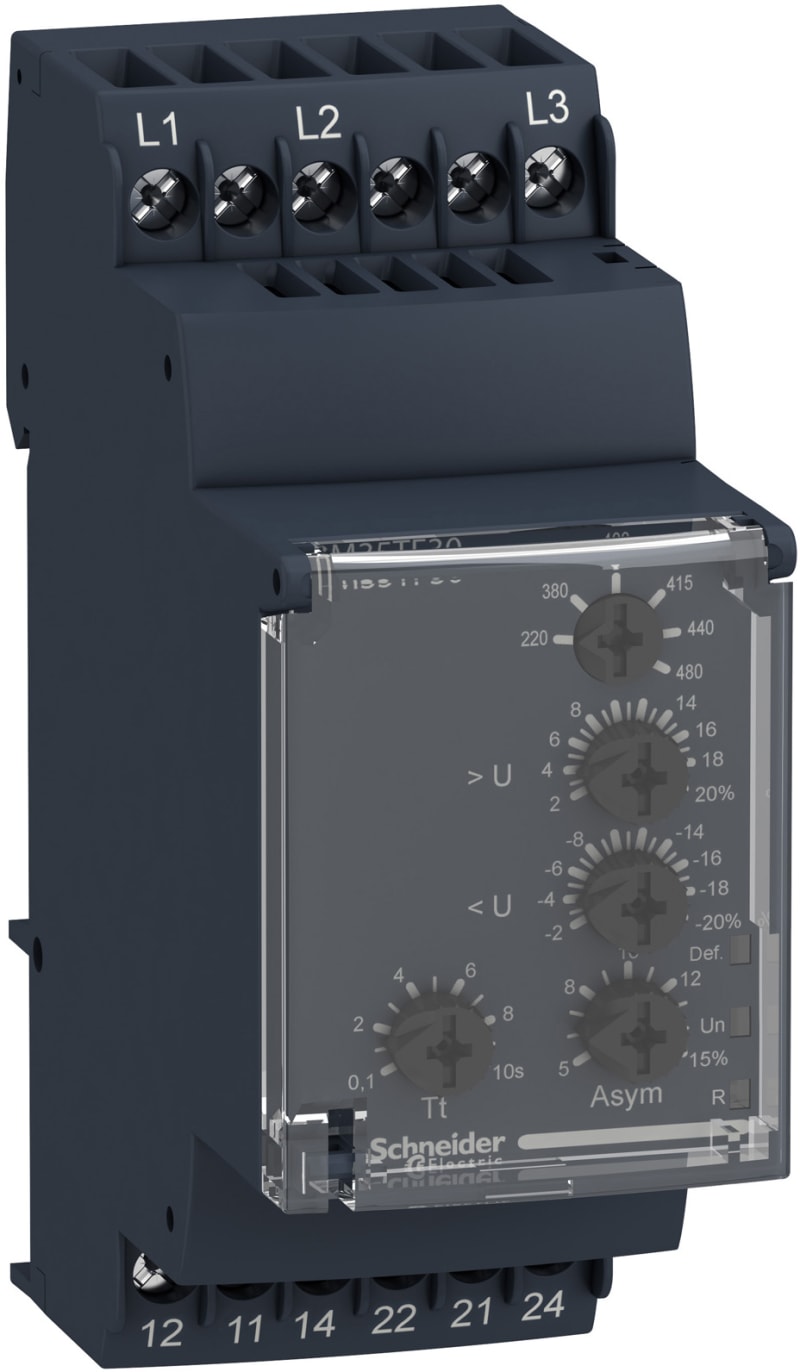

Telemecanique Modular 3-Phase voltage control relay, 5 A, 2 CO, 220…480 V AC RM35UB330

Telemecanique RM35UB330 The relay detects all possible faults that can occur in a three-phase system (phase loss, rotation direction, overvoltage and undervoltage).

Manufacturer part number (MPN)

RM35UB330 EAN / GTIN: 3389119405324 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: 3-phase control relay Relay name: RM35UB3 Product specific application: For 3-phase supply Relay monitored parameters: Overvoltage and undervoltage between phases Control type: Without test button Contacts type and composition: 2 C/O [Us] rated supply voltage: self-powered Supply voltage limits: 194…528 V AC Measurement range: 208...480 V AC Voltage detection threshold: 194 V Threshold adjustment voltage: 2...20 % of Un selected; -12...-2 % in the range 220 V AC; +2...+10 % in the range 480 V AC Hysteresis: 2 % Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 1 % for time delay Measurement error: < 1 % over the whole range with voltage variation; 0.05 %/°C with temperature variation Time delay type: Adjustable 0.3...30 s, 0 + 10 % Tt- time del

HS Code

8536.49

• EAN 3389119405324
• SAP 1000257709
• Code 81144391
