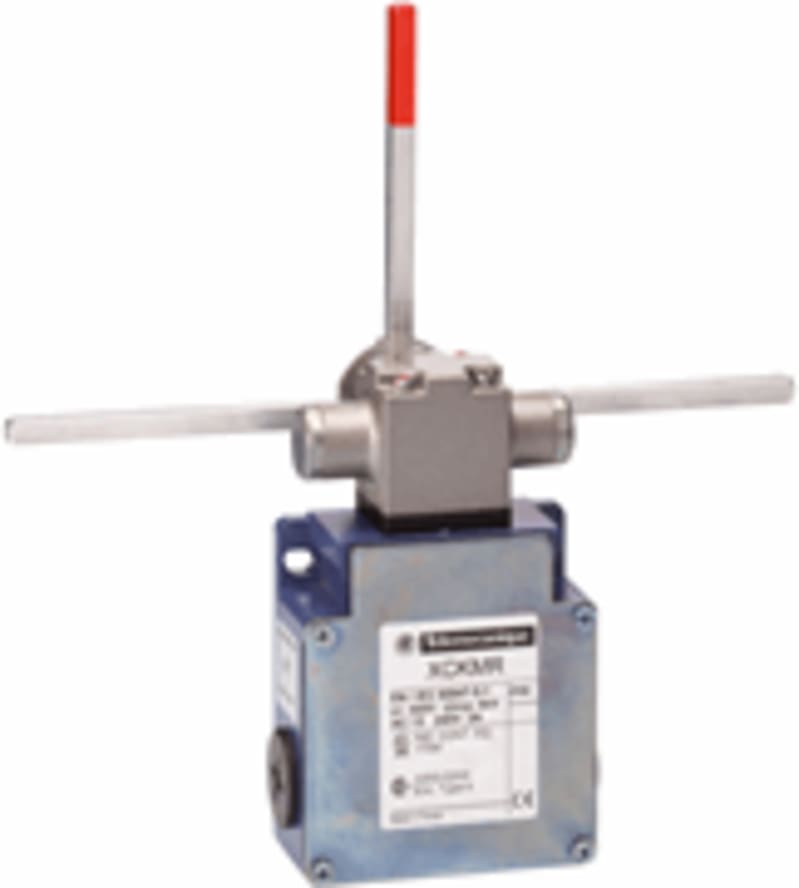

Telemecanique XCKMR54D2 Limit Switch, Metal Cross Lever, Metal Body, PG cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XCKMR54D2 limit switch with metal cross lever actuator, switching contacts, metal body, PG cable entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKMR54D2
- EAN / GTIN
- 3666916057803
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.55 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 200 mm
- Height of sensor
- 118 mm
- Length of sensor
- 59 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 4
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916057803
- SAP 1000341577
- Code 8976096
Product Documentation
