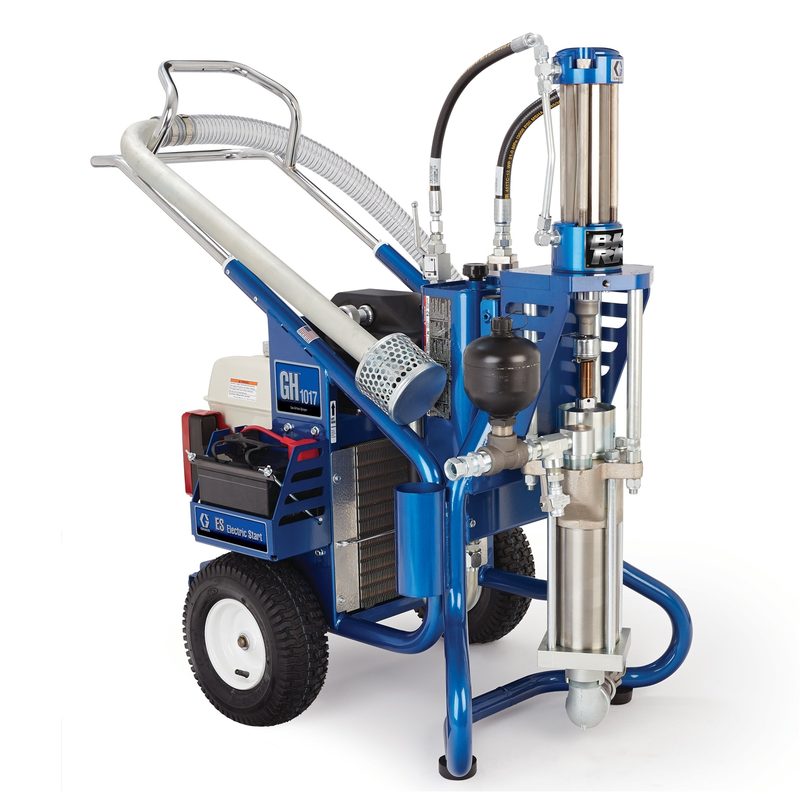

Graco GH 1017ES Big Rig Gas Hydraulic Sprayer, Bare
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 16U277 GH 1017ES Big Rig Gas Hydraulic Sprayer, Bare, part number 16U277. Graco GH 1017ES gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 1000 psi (70 bar) maximum working pressure, 16.5 GPM maximum flow (62.5 L/min), Honda engine 13 HP. Compatible material: Acrylics, Coal Tar, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Polyester, Polyurethane. All values read from the Graco product page (16U277 on graco.com). Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 1017ES
- Part number
- 16U277
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Xtreme
- Pump rod type
- Hard Chrome
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Coal Tar, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Polyester, Polyurethane
- Compatible replacement pump
- 16U751
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 1000 psi (70 bar)
- Maximum flow rate
- 16.5 GPM (62.5 L/min)
- Fluid inlet size
- 2 in NPT
- Fluid outlet size
- 1-1/2 in NPT
- Maximum sound pressure level
- 91 dB(A)
- Wetted material
- Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
- Overall height
- 49 in (1244.6000 mm)
- Overall length
- 43 in (1092.2 mm)
- Overall width
- 28 in (711.2000 mm)
- Weight
- 473 lb (215 kg)
Standards & Compliance
- Pressure Rating
- 1000 psi (70 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 1000 psi max working pressure; 16.5 GPM max flow; Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
