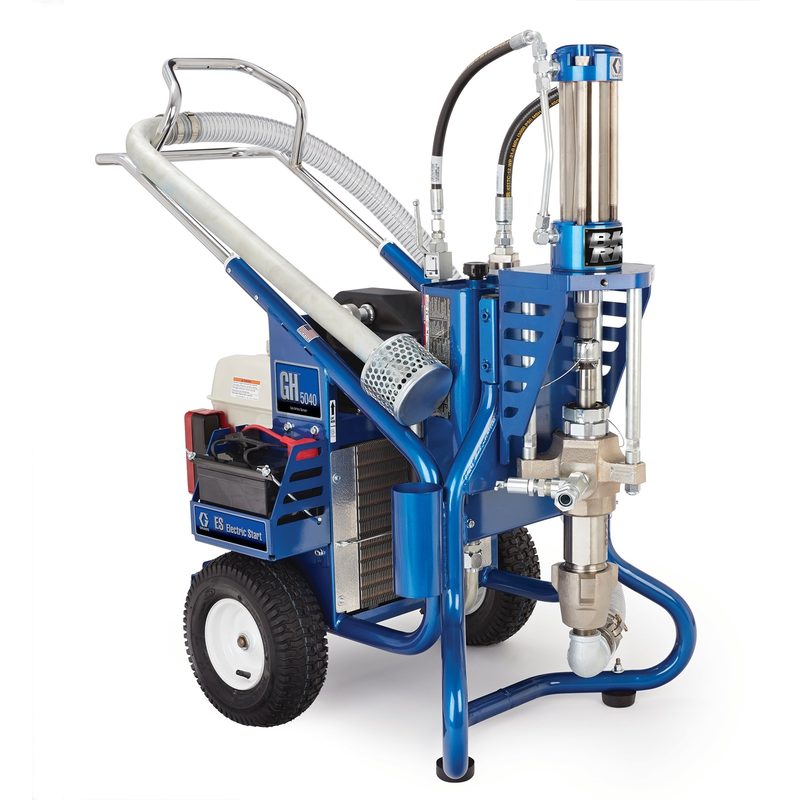

Graco GH 5040ES Big Rig Gas Hydraulic Sprayer, Bare
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 16U280 GH 5040ES Big Rig Gas Hydraulic Sprayer, Bare, part number 16U280. Graco GH 5040ES gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 5000 psi (345 bar) maximum working pressure, 3.5 GPM maximum flow (13.2 L/min), Honda engine 13 HP. Compatible material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing. All values read from the Graco product page (16U280 on graco.com). Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 5040ES
- Part number
- 16U280
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Xtreme
- Pump rod type
- Hard Chrome
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing
- Compatible replacement pump
- 16U754
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 5000 psi (345 bar)
- Maximum flow rate
- 3.5 GPM (13.2 L/min)
- Maximum tip size
- 0.067 in
- Maximum tip size, 1 gun
- 0.067 in
- Fluid inlet size
- 1-1/4 in MNPT
- Fluid outlet size
- 3/4 in NPSF
- Maximum sound pressure level
- 91 dB(A)
- Wetted material
- Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
- Overall height
- 49 in (1244.6000 mm)
- Overall length
- 43 in (1092.2 mm)
- Overall width
- 28 in (711.2000 mm)
- Weight
- 438 lb (199 kg)
Standards & Compliance
- Pressure Rating
- 5000 psi (345 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 5000 psi max working pressure; 3.5 GPM max flow; up to 0.067 in tip; Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
