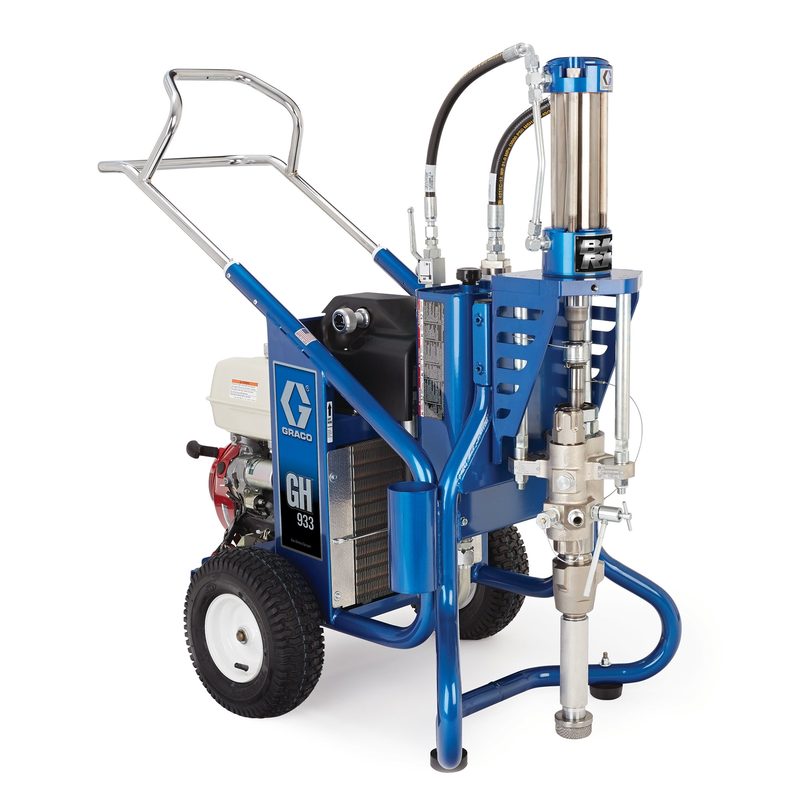

Graco 16U783 GH 933 Big Rig Gas Hydraulic Sprayer, Big 250 System
Graco · Tools & Workshop Consumables · Spray Packages
Graco 16U783 GH 933 Big Rig Gas Hydraulic Sprayer, Big 250 System, part number 16U783. Graco GH 933 gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 7250 psi (500 bar) maximum working pressure, 2.5 GPM maximum flow (9.5 L/min), Honda engine 13 HP. Supports up to 1 gun(s). Compatible material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Epoxy Mastics, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing. All values read from the Graco product page (16U783 on graco.com).
Specifications
- Part number
- 16U783
- HS code
- 8424.20
- Pressure rating
- 7250 psi (500 bar) max working
Compatibility
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 7250 psi max working pressure; 2.5 GPM max flow; up to 0.053 in tip; up to 1 guns. Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
