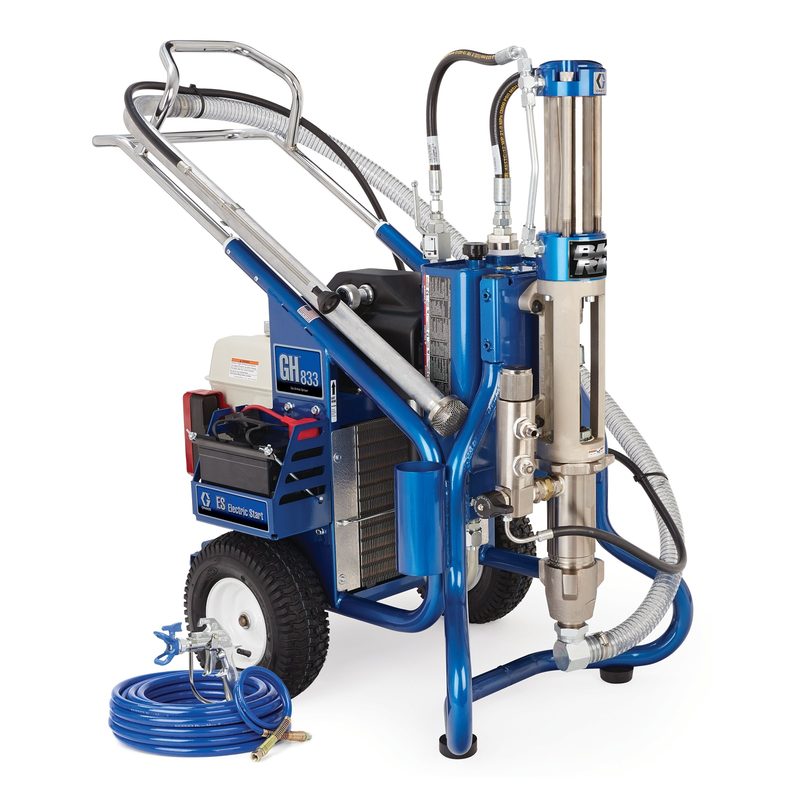

Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Complete
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 16U288 GH 833ES Big Rig Gas Hydraulic Sprayer, Complete, part number 16U288. Graco GH 833ES gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 4000 psi (275.8 bar) maximum working pressure, 4.0 GPM maximum flow (15.1 L/min), Honda engine 13 HP. Supports up to 6 gun(s). Compatible material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing. All values read from the Graco product page (16U288 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 833ES
- Part number
- 16U288
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Endurance
- Pump rod type
- MaxLife
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Pressure control type
- Pressure Control Knob
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
- Compatible replacement pump
- 287834
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 4000 psi (275.8 bar)
- Maximum flow rate
- 4.0 GPM (15.1 L/min)
- Maximum tip size
- 0.065 in
- Maximum tip size, 1 gun
- 0.065 in
- Number of guns supported
- 6
- Maximum hose length
- 50 ft (15 m)
- Fluid inlet size
- 1-1/2 to 11-1/2 in MNPT
- Fluid outlet size
- 1 to 11-1/2 in FNPT
- Outlet paint filter
- 60 Mesh Stainless Steel Screen
- Maximum sound pressure level
- 91 dB(A)
- Weight
- 398 lb (181 kg)
- Includes
- Silver Plus Gun, RAC X LTX 517 Spray Tip, RAC X LTX 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose
Standards & Compliance
- Pressure Rating
- 4000 psi (275.8 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 4000 psi max working pressure; 4.0 GPM max flow; up to 0.065 in tip; up to 6 guns. Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
Product Documentation
More from Graco
Graco
Graco GH 933ES Big Rig Gas Hydraulic Sprayer, Bare
16U285
Graco
Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Bare
16U287
Graco
Graco GH 733ES Gas Hydraulic Sprayer, Big 250 System
16U778
Graco
Graco GH 933ES Big Rig Gas Hydraulic Sprayer, Big 250 System
16U784
Graco
Graco GH 5040ES Big Rig Gas Hydraulic Sprayer, Big 250 System
16U782
Graco
Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Big 250 System
16U781
Graco
Graco GH 833 Gas Hydraulic Sprayer, Big 250 System
16U780
Graco
Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Big 250 System
16U776
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 16U288?
- 16U288 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 16U288.
- What is the HS code for 16U288?
- The customs tariff (HS) code for 16U288 is 8424.20.
- Who manufactures 16U288?
- 16U288 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 16U288?
- Yes — the 16U288 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 16U288?
- The minimum order quantity is 1.
- Is 16U288 available?
- Yes — 16U288 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
