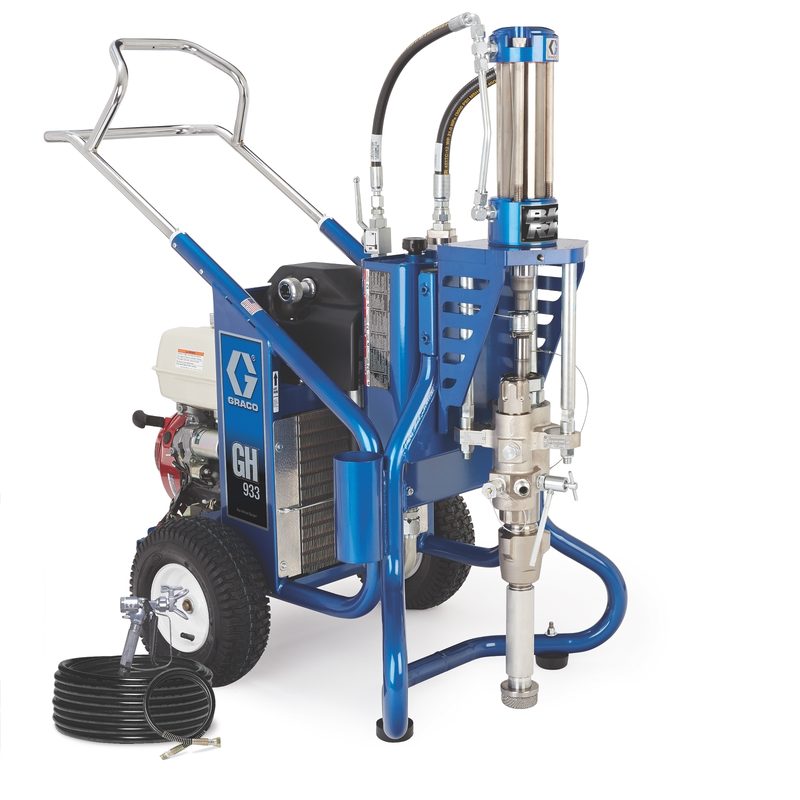

Graco GH 933 Big Rig Gas Hydraulic Sprayer, Complete
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 16U282 GH 933 Big Rig Gas Hydraulic Sprayer, Complete, part number 16U282. Graco GH 933 gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 7250 psi (500 bar) maximum working pressure, 2.5 GPM maximum flow (9.5 L/min), Honda engine 13 HP. Supports up to 1 gun(s). Compatible material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing. All values read from the Graco product page (16U282 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 933
- Part number
- 16U282
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Xtreme
- Pump rod type
- Chromex
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Pressure control type
- Pressure Control Knob
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicon, Texture Mud, Waterproofing
- Compatible replacement pump
- 16U755
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 7250 psi (500 bar)
- Maximum flow rate
- 2.5 GPM (9.5 L/min)
- Maximum tip size
- 0.065 in
- Maximum tip size, 1 gun
- 0.053 in
- Number of guns supported
- 1
- Maximum hose length
- 50 ft (15 m)
- Fluid inlet size
- 1-1/4 in MNPT
- Fluid outlet size
- 3/4 in NPSF
- Outlet paint filter
- Easy Out
- Maximum sound pressure level
- 91 dB(A)
- Wetted material
- Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
- Weight
- 438 lb (199 kg)
- Includes
- XTR-7 Airless Spray Gun, XHD RAC 519 Spray Tip, XHD RAC Guard, 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose
Standards & Compliance
- Pressure Rating
- 7250 psi (500 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 7250 psi max working pressure; 2.5 GPM max flow; up to 0.065 in tip; up to 1 guns. Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
