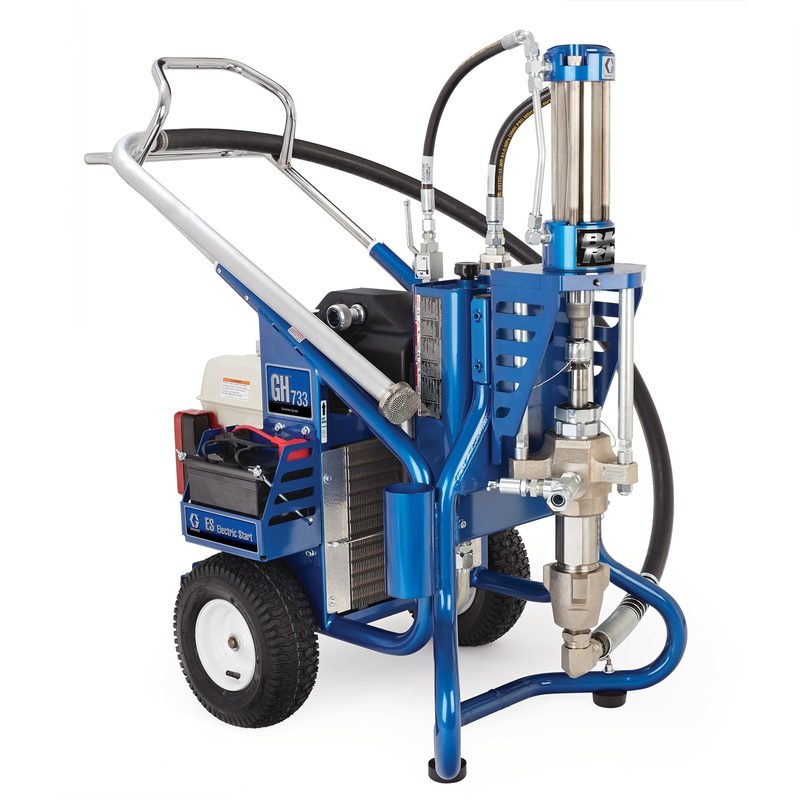

Graco GH 733ES Gas Hydraulic Sprayer, Bare
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 16U279 GH 733ES Gas Hydraulic Sprayer, Bare, part number 16U279. Graco GH 733ES gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 4000 psi (276 bar) maximum working pressure, 4.0 GPM maximum flow (15.1 L/min), Honda engine 13 HP. Compatible material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing. All values read from the Graco product page (16U279 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 733ES
- Part number
- 16U279
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Xtreme
- Pump rod type
- Chromex
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
- Compatible replacement pump
- 16U753
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 4000 psi (276 bar)
- Maximum flow rate
- 4.0 GPM (15.1 L/min)
- Maximum tip size
- 0.065 in
- Maximum tip size, 1 gun
- 0.065 in
- Fluid inlet size
- 1-1/4 in MNPT
- Fluid outlet size
- 3/4 in NPSF
- Maximum sound pressure level
- 91 dB(A)
- Wetted material
- Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
- Overall height
- 49 in (1244.6000 mm)
- Overall length
- 43 in (1092.2 mm)
- Overall width
- 28 in (711.2000 mm)
- Weight
- 434 lb (197 kg)
Standards & Compliance
- Pressure Rating
- 4000 psi (276 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 4000 psi max working pressure; 4.0 GPM max flow; up to 0.065 in tip; Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
