Graco GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare
Pricing
Request a quote
We reply within 24 hours
Product Description

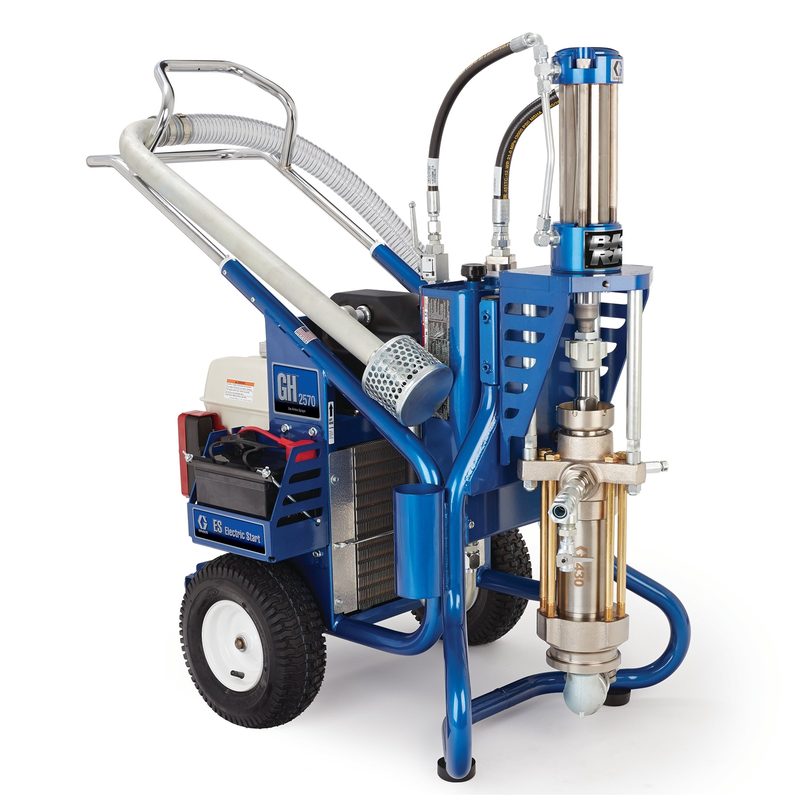

Graco 16U278 GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare, part number 16U278. Graco GH 2570ES gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 2500 psi (172 bar) maximum working pressure, 7.0 GPM maximum flow (26.5 L/min), Honda engine 13 HP. Compatible material: Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer. All values read from the Graco product page (16U278 on graco.com). Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 2570ES
- Part number
- 16U278
- Type
- Airless Sprayer
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 13
- Motor type
- Hydraulic Motor
- Pump type
- Xtreme
- Pump rod type
- Hard Chrome
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Material application
- Paints, Primers
- Compatible material
- Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer
- Compatible replacement pump
- 16U752
- Engine power
- 13 HP (390 cc)
- Maximum working pressure
- 2500 psi (172 bar)
- Maximum flow rate
- 7.0 GPM (26.5 L/min)
- Fluid inlet size
- 2 in NPT
- Fluid outlet size
- 1-1/2 in NPT
- Maximum sound pressure level
- 91 dB(A)
- Wetted material
- Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
- Overall height
- 49 in (1244.6000 mm)
- Overall length
- 43 in (1092.2 mm)
- Overall width
- 28 in (711.2000 mm)
- Weight
- 471 lb (214 kg)
Standards & Compliance
- Pressure Rating
- 2500 psi (172 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 2500 psi max working pressure; 7.0 GPM max flow; Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
