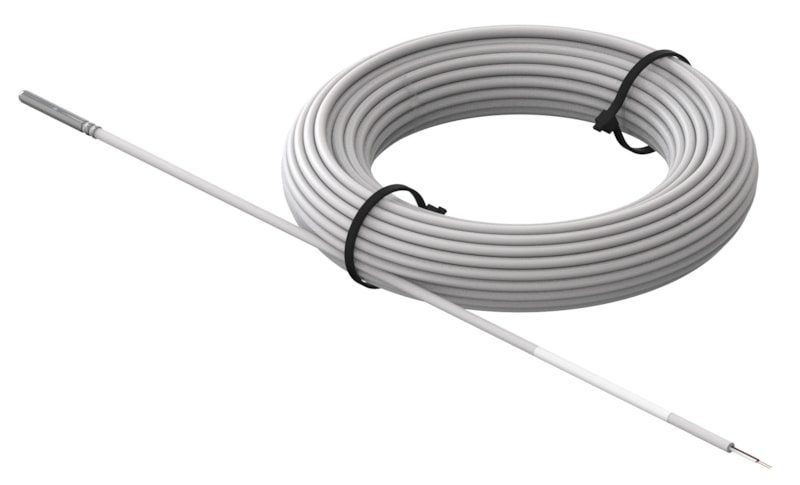

Danfoss MBT 353 cable temperature sensor, Pt 1000, 100 m cable, variable insertion (code 084Z3229)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 353 cable temperature sensor, code 084Z3229 (type designation MBT 353-0000-10-1000-1). Submersible/variable-insertion RTD with a 100 m moulded connection cable for tank, duct and immersion measurement. Pt 1000 platinum resistance element (1000 ohm at 0 C), Class B tolerance per EN 60751. Measuring range 0 to +70 C (32 to 158 F); resistance (ohm) output, 2-wire; 3.5 mm diameter protection tube; TPV-E-FDA cable, 100 m length; IP68 enclosure. Supplied in a 6-piece industrial pack. CE marked.
Specifications
- Part number
- 084Z3229
- HS code
- 9025.19
- Temperature range
- 0 to +70 C (32 to 158 F)
- Standard size
- 100 m cable
Compatibility
Confirm the insertion length (undefined), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Standards
Approvals
