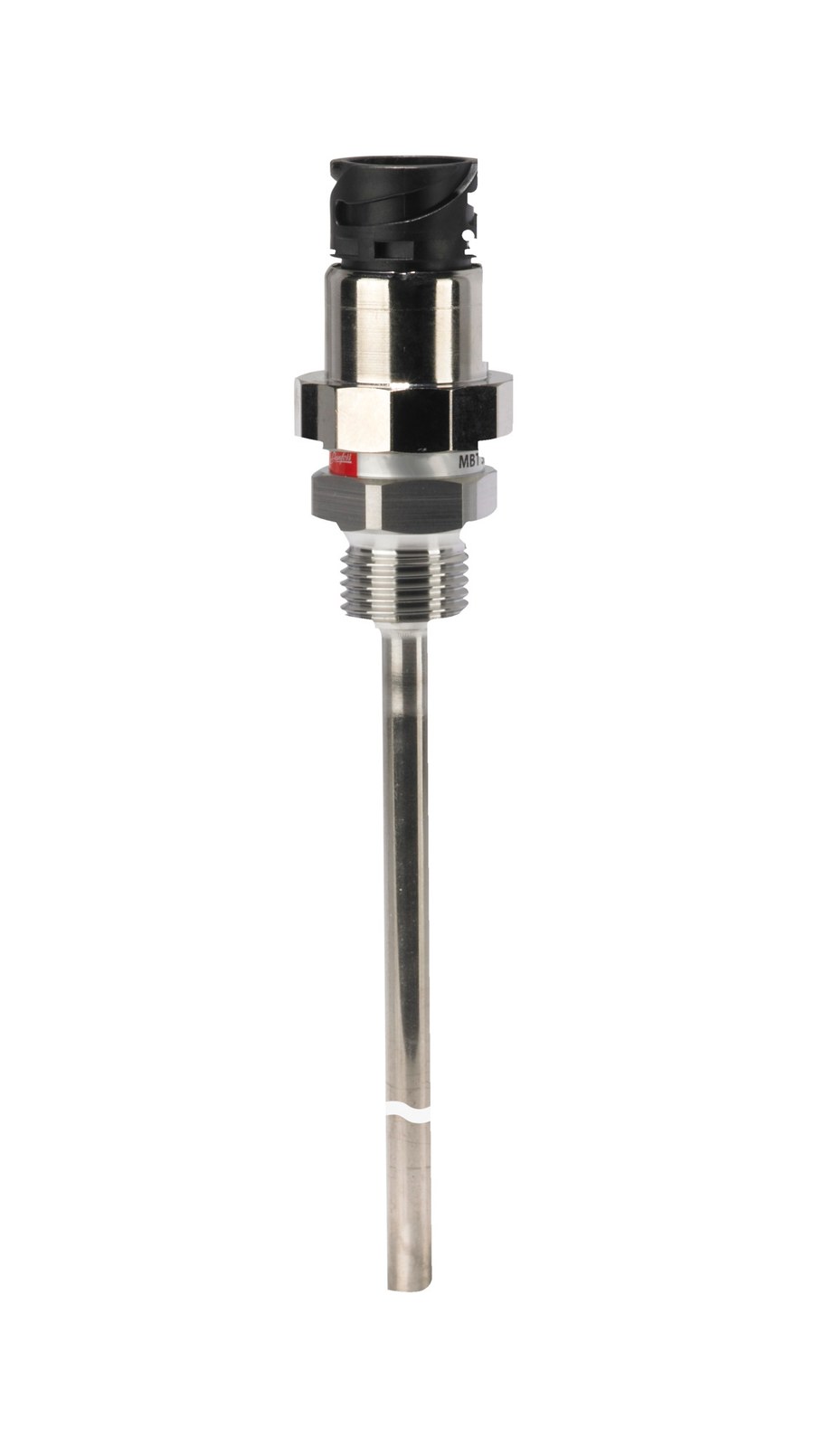

Danfoss MBT 5250 temperature sensor, Pt 1000, 40 mm insertion, M14 x 1.5, bayonet 4-pin connector (code 084Z3273)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 temperature sensor, code 084Z3273 (type designation MBT 5250-0100-040-4C0). Insertion RTD for process, industry and marine temperature measurement. Pt 1000 (1000 ohm at 0 C) platinum element, Class B tolerance per EN 60751. Insertion length 40 mm; M14 x 1.5 male, stainless steel (ISO 6149) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire; Bayonet, 4-pin (DIN 72585); IP65 enclosure per IEC 60529. Supplied in a 25-piece multipack. CE marked.
Specifications
- Part number
- 084Z3273
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 40 mm insertion
- Thread standard
- ISO 6149
Compatibility
Confirm the insertion length (40 mm), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Standards
- EN 60751
- ISO 6149
- DIN 72585
- IEC 60529
Approvals
