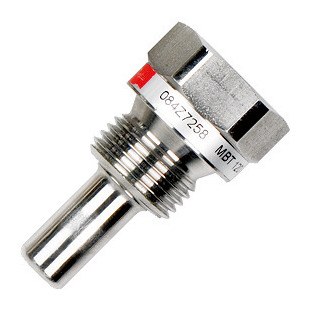

Danfoss MBT 120 sensor pocket (thermowell), 60 mm insertion, NPT 3/8-18, AISI 316 Ti
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket (thermowell), code 084Z3268 (type designation MBT 120-630-060-G). Protection pocket that receives an MBT cable temperature sensor, allowing the sensor to be withdrawn without opening the process. 60 mm insertion length; NPT 3/8-18 male (ANSI/ASME B1.20.1) process connection; AISI 316 Ti stainless steel, 11 mm diameter. Rated -50 to +200 C (-58 to +392 F). Supplied in a 40-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-630-060-G
- Code number
- 084Z3268
- Function
- pocket for MBT cable temperature sensor
- Insertion length
- 60 mm
- Process connection
- NPT 3/8-18 male (ANSI/ASME B1.20.1)
- Protection tube
- AISI 316 Ti stainless steel, 11 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 40 pc
- Net weight
- 0.101 kg
- Approvals
- CE
- EAN
- 5702423283866
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ANSI/ASME B1.20
- Connection type
- NPT
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.36 in
- Insertion length [mm]
- 60 mm
- Insertion type
- Fixed
- Internal connection size
- 1/4
- Internal connection type
- G
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 3/8-18
- Process connection standard
- ANSI/ASME B1.20.1
- Process connection type
- NPT
- Protection tube diameter [in]
- 0.433 in
- Protection tube diameter [mm]
- 11 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 3560, MBT 5560
Standards & Compliance
- Size / Series
- 60 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ANSI/ASME B1.20.1
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket. Confirm the NPT 3/8-18 male (ANSI/ASME B1.20.1) boss and that the paired MBT cable sensor length suits the 60 mm pocket depth.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 50 mm insertion, G 1/4, span 0 to +100 C
084Z4020
Danfoss
Danfoss AXV 11H2 hot gas bypass controller — 3/8 in ODF solder, R134A, factory set 2.5 bar, code
034L0010
Danfoss
Danfoss 1/4 in Schrader valve for KV pressure regulators (KVP/KVL/KVR/KVD/KVC) — pack of 10, code
034L0006
Danfoss
Danfoss KVP 12 evaporator pressure controller — 12 mm (1/2 in) flare, 0 – 5.5 bar, code
034L0021
Danfoss
Danfoss KVP 15 evaporator pressure controller — 16 mm (5/8 in) flare, 0 – 5.5 bar, code
034L0022
Danfoss
Danfoss KVP 12 evaporator pressure controller — 1/2 in ODF solder solder, 0 – 5.5 bar, code
034L0023
Danfoss
Danfoss KVP 22 evaporator pressure controller — 22 mm (7/8 in) ODF solder solder, 0 – 5.5 bar, code
034L0025
Danfoss

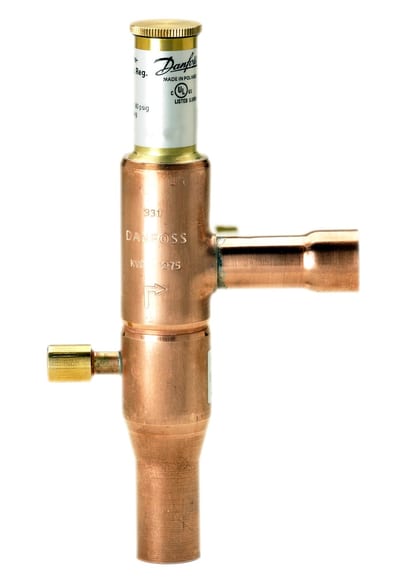

Danfoss KVP 28 evaporator pressure controller — 1 1/8 in ODF solder solder, 0 – 5.5 bar, code
