Danfoss 1/4 in Schrader valve for KV pressure regulators (KVP/KVL/KVR/KVD/KVC) — pack of 10, code
Pricing
Request a quote
We reply within 24 hours
Product Description

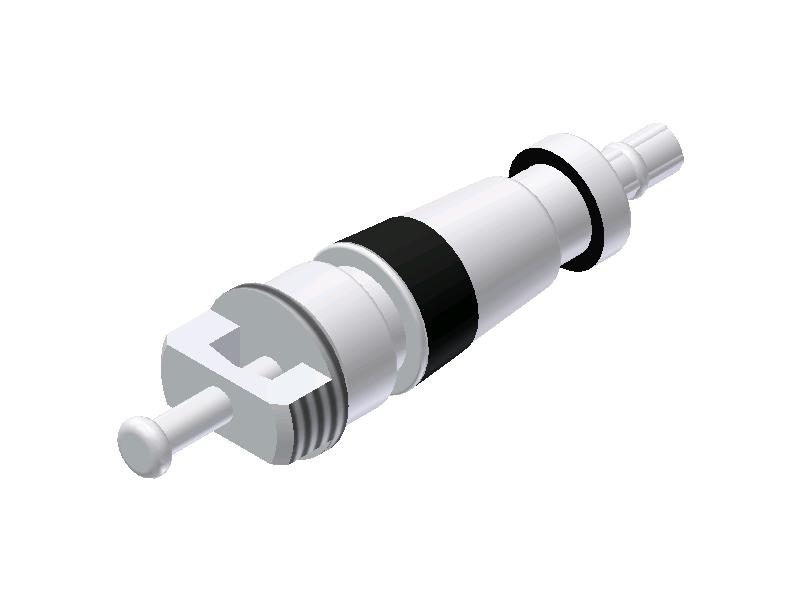

Danfoss 1/4 in Schrader valve (code 034L0006) — the replaceable Schrader core for the pressure-test / gauge port on Danfoss KV mechanical pressure regulating valves (KVP evaporator, KVL crankcase, KVR condensing, KVD receiver and KVC hot-gas bypass regulators). Supplied in industrial packing of 10 pieces. Use to restore a leaking or damaged test-port valve on an installed KV regulator without replacing the regulator. EU and China RoHS compliant. Price on quote.
Technical Specifications
- Type
- Schrader valve (pressure test port core)
- Code number
- 034L0006
- Series
- Danfoss KV pressure regulator spare parts
- Function
- 1/4 in Schrader valve for the pressure test / gauge port
- Fits
- KVP, KVL, KVR, KVD 12, KVD 15, KVC mechanical pressure regulating valves
- Supplied
- Industrial packing of 10 pieces
- Net weight
- 0.9 g (per piece)
- Gross weight
- 2.5 g
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702422012344
- Product group
- KV valves spare parts
- Type designation
- Schrader valve
- REACH candidate-list substances
- No
- EU RoHS compliance
- Yes
- China RoHS compliance
- Yes
- Used for product
- KVD 12
Standards & Compliance
- Standard
- Danfoss KV spare parts
- Size / Series
- 1/4 in
- HS Code
- 8481.90
Compatibility & Fitment
Replacement 1/4 in Schrader core for the gauge/test port on Danfoss KV mechanical pressure regulating valves (KVP, KVL, KVR, KVD, KVC). Supplied as a pack of 10.
