Danfoss AXV 11H2 hot gas bypass controller — 3/8 in ODF solder, R134A, factory set 2.5 bar, code
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AXV 11H2 hot gas bypass controller (code 034L0010) for R134a refrigeration systems. The AXV opens on falling evaporating pressure and injects hot gas from the discharge line to maintain a minimum evaporating pressure at low load, providing modulating capacity control and stable low-load operation. This SKU has 3/8 in ODF solder connections, a regulating range of 0.5 – 3.2 bar (factory set at 2.5 bar) and a maximum working pressure of 49 bar (711 psig). UL listed (C UL US). Price on quote.
Technical Specifications
- Type
- Hot gas bypass controller, AXV 11H2 Code number: 034L0010 Series: Danfoss AXV hot gas bypass controller Function: Hot-gas bypass / capacity regulation, modulating Connection: 3/8 in ODF solder, inlet and outlet Connection type: Solder, ODF Regulating range: 0.5 – 3.2 bar (factory setting 2.5 bar) Max. working pressure (PB/MWP): 49 bar (711 psig) Refrigerant: R134a Conformity assessment: PED category Art. 4, par. 3 (sound engineering practice) Approvals: UL (C UL US Listed) Net weight: 0.180 kg Gross weight: 0.211 kg EAN: 5715255248217 Product group: Press. and temp. regul. valves Approval: C UL US LISTED Body material: Stainless steel Connection material: Bi-metal: Steel/copper Direction: Angleway Factory setting [bar]: 2.5 bar Factory setting [psig]: 36.1 psig Flow direction: Single-flow Flow direction indicator: Laser engraved 1-way arrow Fluid Group: 2 Inlet connection type: Solder, ODF Inlet size [in]: 3/8 in Max. Working Pressure [bar]: 49 bar Max. Working Pressure [psig]: 711 psig Orifice capacities [kW]: 3.64 kW Orifice capacities [TR]: 1.04 TR Orifice size: 11 Outlet connection type: Solder, ODF Outlet size [in]: 3/8 in PED category: Art. 4, par. 3 Pressure equalization: Internally equalized Pressure range [bar] [max]: 3.2 bar Pressure range [bar] [min]: 0.5 bar Pressure range [psi] [max]: 46 psi Pressure range [psi] [min]: 7 psi Refrigerants: R134a Spring type: 2 UL approved refrigerants: R134a
Standards & Compliance
- Standard
- Danfoss AXV
- Size / Series
- 3/8 in
- Material
- Steel body; copper ODF connection stubs
- Pressure Rating
- 49 bar (711 psig)
- HS Code
- 8481.10
Compatibility & Fitment
Danfoss AXV hot gas bypass regulator for R134a systems. A liquid injection line (thermostatic expansion valve) is normally required for de-superheating with hot-gas bypass. Confirm the 3/8 in ODF solder connection and R134a application before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss 1/4 in Schrader valve for KV pressure regulators (KVP/KVL/KVR/KVD/KVC) — pack of 10, code
034L0006
Danfoss
Danfoss KVP 12 evaporator pressure controller — 12 mm (1/2 in) flare, 0 – 5.5 bar, code
034L0021
Danfoss
Danfoss KVP 15 evaporator pressure controller — 16 mm (5/8 in) flare, 0 – 5.5 bar, code
034L0022
Danfoss
Danfoss KVP 12 evaporator pressure controller — 1/2 in ODF solder solder, 0 – 5.5 bar, code
034L0023
Danfoss
Danfoss KVP 22 evaporator pressure controller — 22 mm (7/8 in) ODF solder solder, 0 – 5.5 bar, code
034L0025
Danfoss
Danfoss KVP 28 evaporator pressure controller — 1 1/8 in ODF solder solder, 0 – 5.5 bar, code
034L0026
Danfoss
Danfoss KVP 12 evaporator pressure controller — 12 mm ODF solder solder, 0 – 5.5 bar, code
034L0028
Danfoss

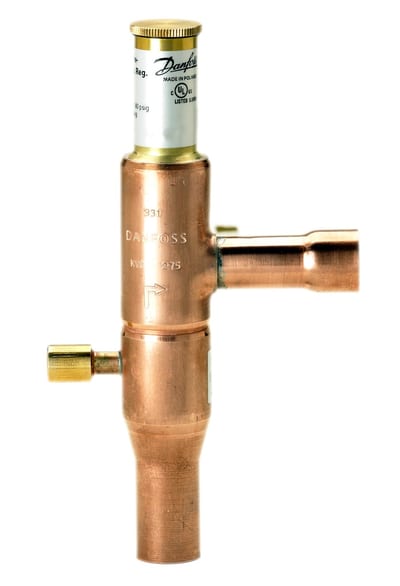

Danfoss KVP 15 evaporator pressure controller — 16 mm (5/8 in) ODF solder solder, 0 – 5.5 bar, code
