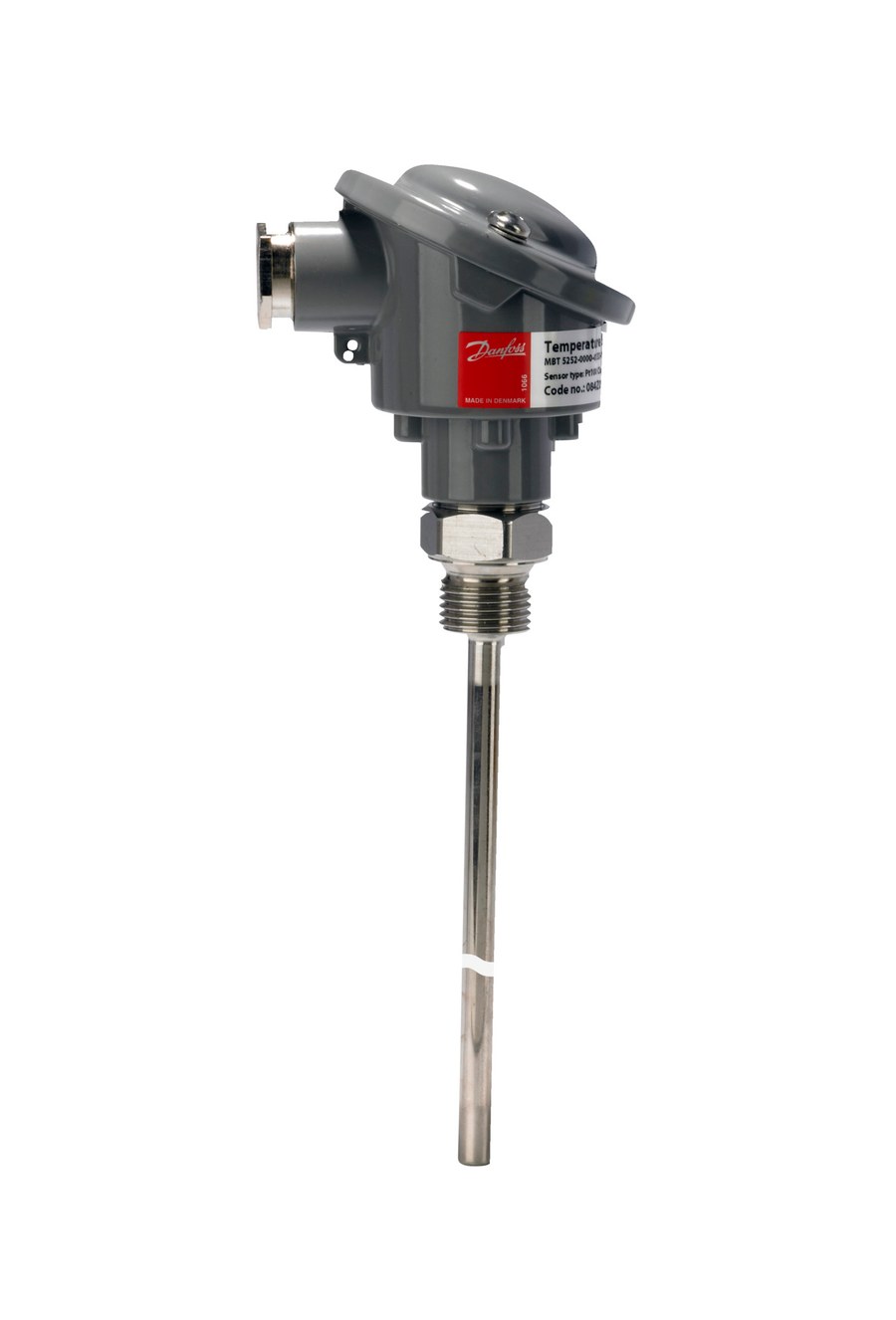

Danfoss MBT 5252 heavy-duty temperature sensor, Pt 1000, 50 mm insertion, G 1/2, Type B head Pg 16
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5252 temperature sensor, code 084Z3280 (type designation MBT 5252-0300-0050-0200-0000). Insertion RTD for process, industry and marine temperature measurement. Pt 1000 (1000 ohm at 0 C) platinum element, Class B tolerance per EN 60751. Insertion length 50 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. Supplied in a 8-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5252 (insertion temperature sensor)
- Type designation
- MBT 5252-0300-0050-0200-0000
- Code number
- 084Z3280
- Sensor element
- Pt 1000 (1000 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 50 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance), 2-wire
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 8 pc
- Net weight
- 0.364 kg
- Approvals
- CE
- EAN
- 5702423283644
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 2 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
Confirm the insertion length (50 mm), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
