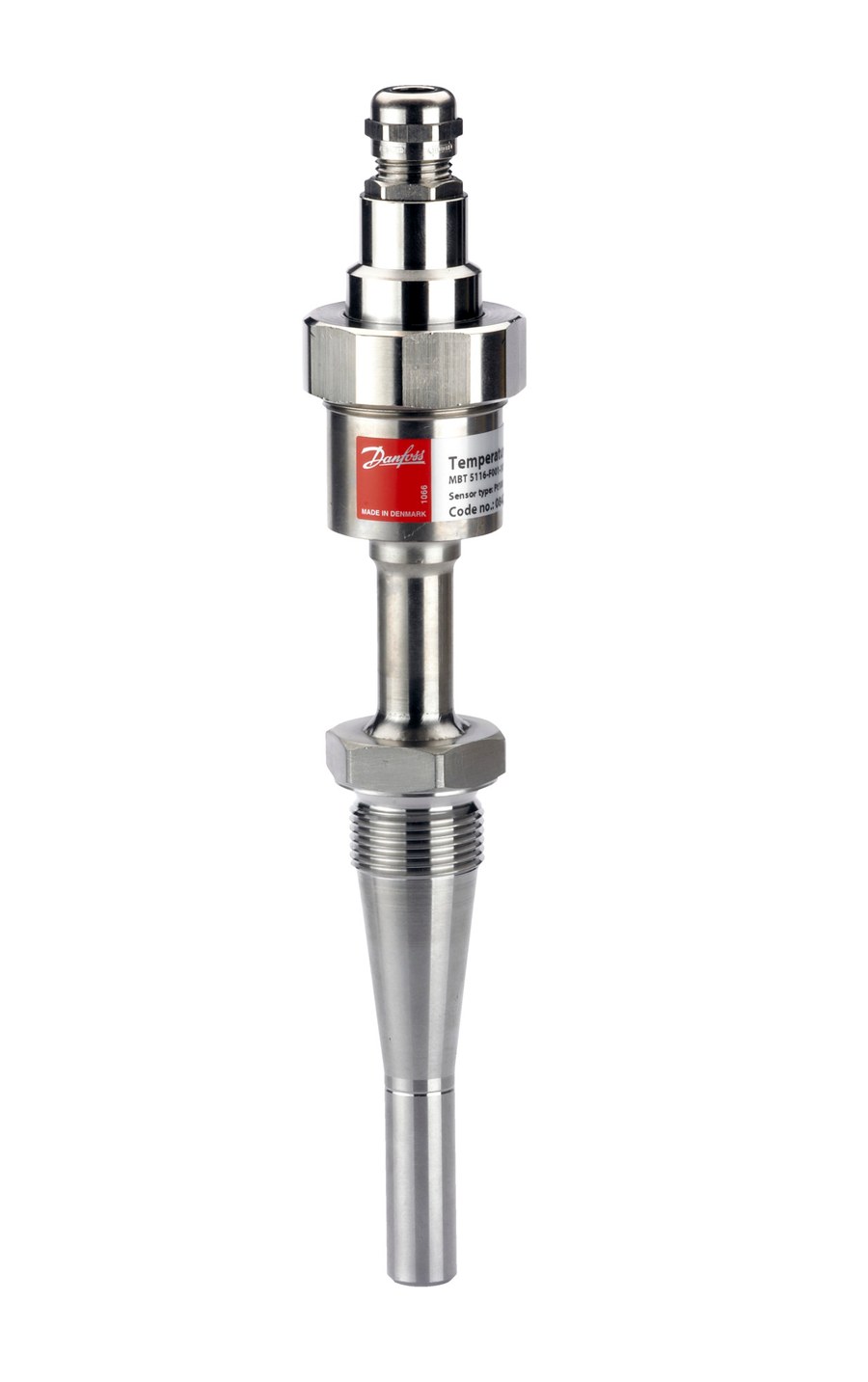

Danfoss MBT 5116 slim-line temperature sensor, Pt 100, 100 mm insertion, G 3/4, slim-line head Pg 9 (code 084Z3257)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5116 temperature sensor, code 084Z3257 (type designation MBT 5116-F001-100-10-0000). Insertion RTD for process, industry and marine temperature measurement. Pt 100 (100 ohm at 0 C), exchangeable platinum element, Class B tolerance per EN 60751. Insertion length 100 mm; G 3/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel. Measuring range -50 to +600 C (-58 to +1112 F); resistance (ohm) output, 2-wire; Slim-line connection head, Pg 9; IP65 enclosure per IEC 60529. Supplied in a 13-piece multipack. CE marked.
Specifications
- Part number
- 084Z3257
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +600 C (-58 to +1112 F)
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
Confirm the insertion length (100 mm), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
