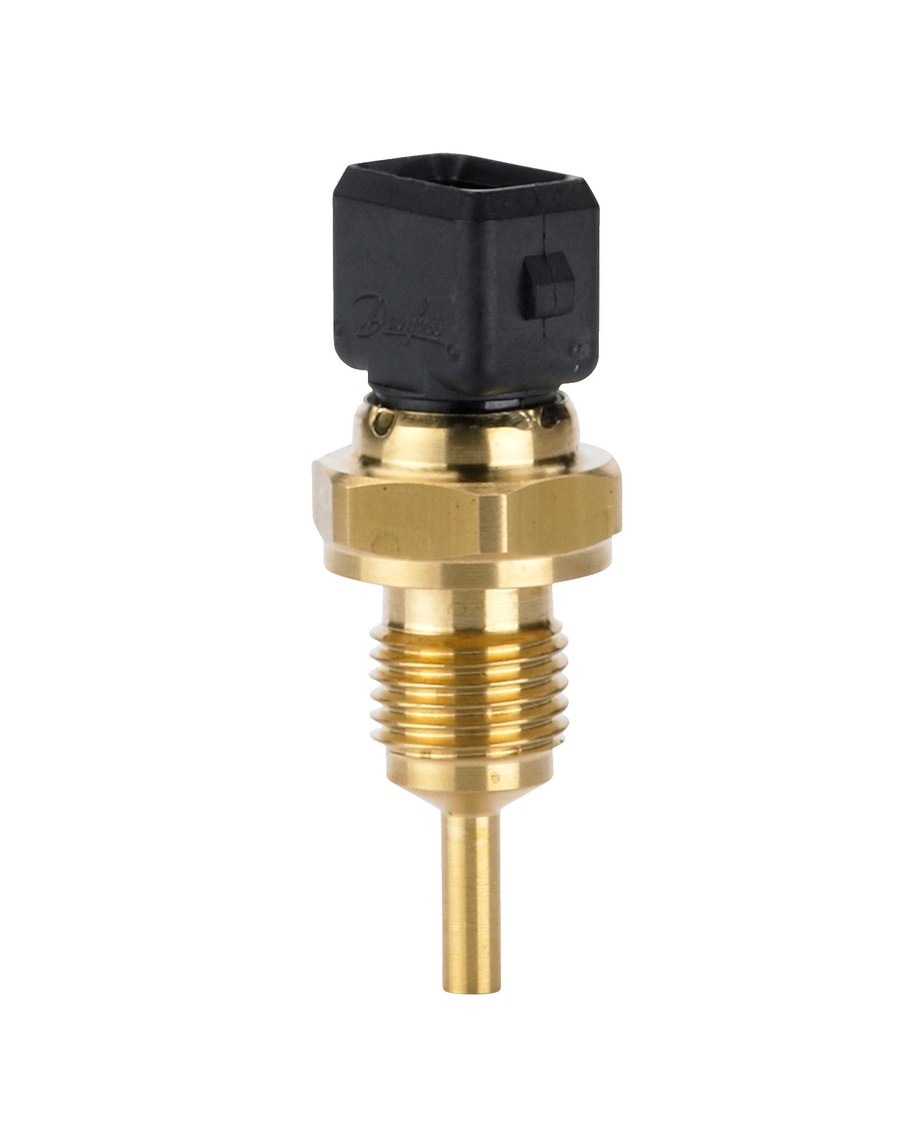

Danfoss MBT 3270 temperature sensor, Pt 100 Class A, 28 mm insertion, G 1/4 brass, AMP Junior Power Timer 2-Pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 temperature sensor, code 084Z3242 (type designation MBT 3270-00600-028-C0300-000). Insertion RTD for process, industry and marine temperature measurement. Pt 100 (100 ohm at 0 C) platinum element, Class A tolerance per EN 60751. Insertion length 28 mm; G 1/4 male, brass (DIN 3852-E / ISO 228-1-A) process connection; Brass, 3 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output, 2-wire; AMP Junior Power Timer, 2-pin; IP67 enclosure per IEC 60529. Supplied in a 40-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 3270 (insertion temperature sensor)
- Type designation
- MBT 3270-00600-028-C0300-000
- Code number
- 084Z3242
- Sensor element
- Pt 100 (100 ohm at 0 C)
- Tolerance class
- Class A per EN 60751
- Insertion length
- 28 mm
- Process connection
- G 1/4 male, brass (DIN 3852-E / ISO 228-1-A)
- Protection tube
- Brass, 3 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance), 2-wire
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.026 kg
- Approvals
- CE
- EAN
- 5702423274871
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- Connection standard
- DIN 3852-E (ISO 228)
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Integrated
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.1 in
- Insertion length [mm]
- 28 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection notes
- DIN 3852-E
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.118 in
- Protection tube diameter [mm]
- 3 mm
- Protection tube material
- BRASS
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class A
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 28 mm insertion
- Material
- Brass (protection tube)
- Thread Standard
- DIN 3852-E
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
Confirm the insertion length (28 mm), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Product Documentation
More from Danfoss
Danfoss

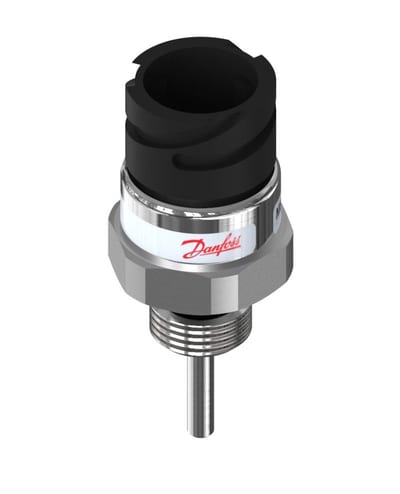

Danfoss MBT 3270 temperature sensor, NTC 2020 ohm, 30 mm insertion, M16 x 1.5, M12 4-Pin connector
084Z3274
Danfoss

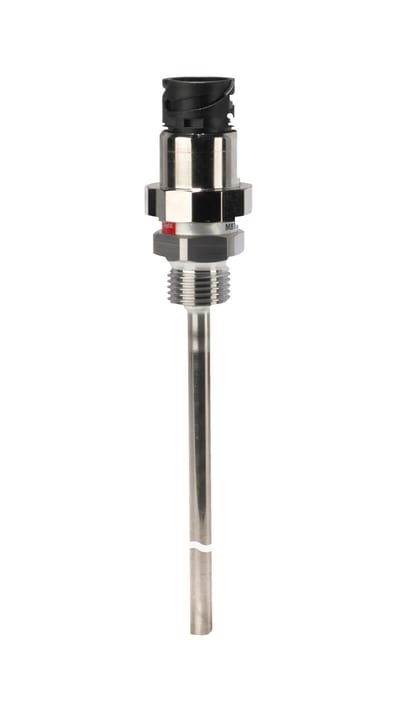

Danfoss MBT 5250 temperature sensor, Pt 100, 50 mm insertion, M18 x 1.5, bayonet 4-Pin connector
084Z3245
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 1000, 40 mm insertion, M14 x 1.5, bayonet 4-Pin connector
084Z3273
Danfoss

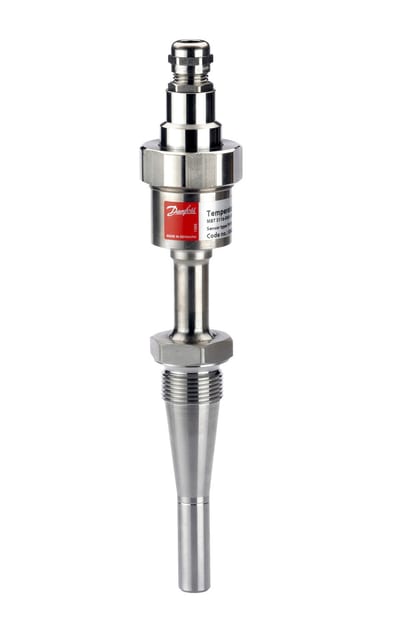

Danfoss MBT 5116 slim-line temperature sensor, Pt 100, 100 mm insertion, G 3/4, slim-line head Pg 9
084Z3257
Danfoss
Danfoss MBT 5116 slim-line temperature sensor, Pt 100, 200 mm insertion, G 3/4, slim-line head Pg 9
084Z3260
Danfoss
Danfoss MBT 5116 slim-line temperature sensor, Pt 100, 250 mm insertion, G 3/4, slim-line head Pg 9
084Z3261
Danfoss
Danfoss MBT 5116 slim-line temperature sensor, Pt 100, 300 mm insertion, G 3/4, slim-line head Pg 9
084Z3262
Danfoss

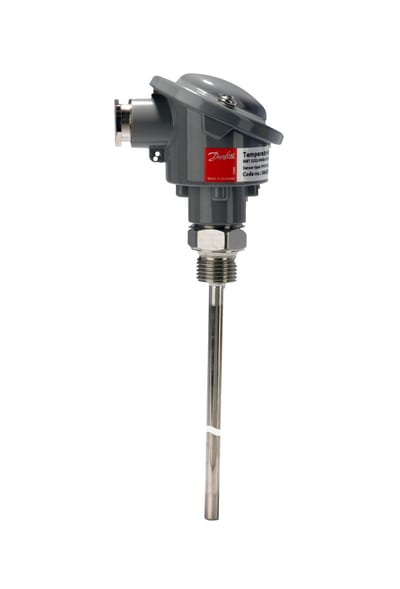

Danfoss MBT 5252 heavy-duty temperature sensor, Pt 1000, 50 mm insertion, G 1/2, Type B head Pg 16
