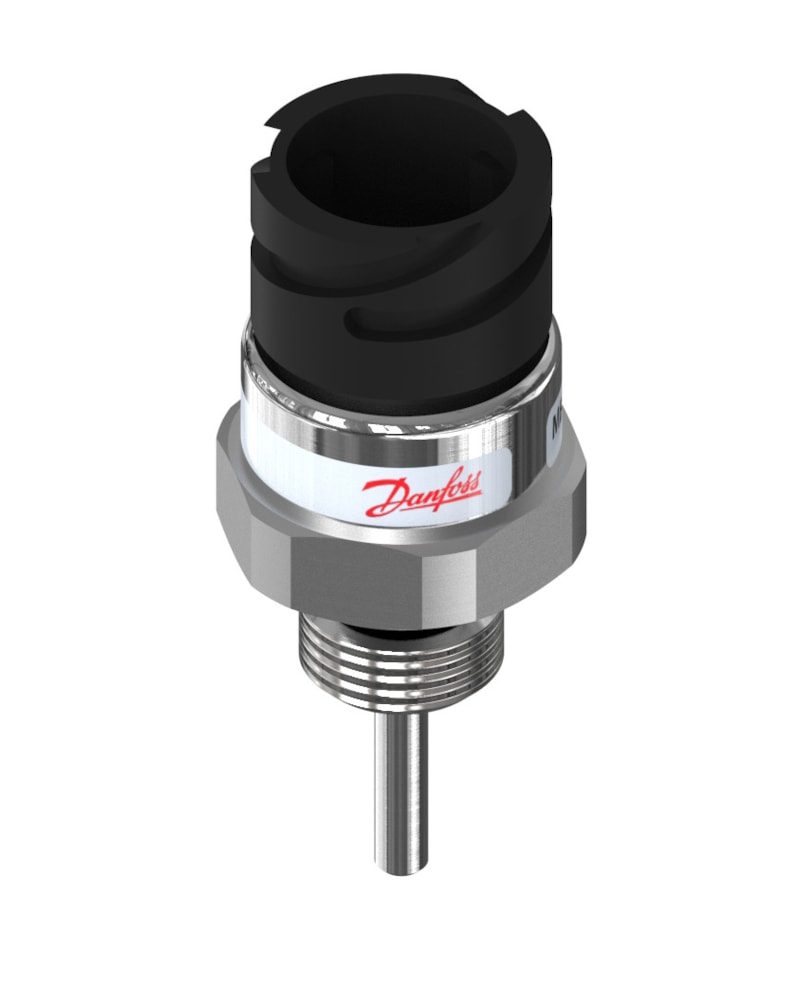

Danfoss MBT 3270 temperature sensor, NTC 2020 ohm, 30 mm insertion, M16 x 1.5, M12 4-Pin connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 temperature sensor, code 084Z3274 (type designation MBT 3270-06162-030-50F00-000). Insertion RTD for process, industry and marine temperature measurement. NTC (2020 ohm at 25 C) thermistor element, tolerance +/- 1 %. Insertion length 30 mm; M16 x 1.5 male (ISO 965) process connection; AISI 316 Ti stainless steel, 4.2 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output, 2-wire; M12 x 1, 4-pin (IEC 61076-2-101); IP54 enclosure per IEC 60529. Supplied in a 40-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 3270 (insertion temperature sensor)
- Type designation
- MBT 3270-06162-030-50F00-000
- Code number
- 084Z3274
- Sensor element
- NTC (2020 ohm at 25 C)
- Tolerance
- +/- 1 %
- Insertion length
- 30 mm
- Process connection
- M16 x 1.5 male (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 4.2 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance), 2-wire
- Electrical connection
- M12 x 1, 4-pin (IEC 61076-2-101)
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.054 kg
- Approvals
- CE
- EAN
- 5702423287833
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 pin
- Electrical connection standard
- IEC 61076-2-101
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.18 in
- Insertion length [mm]
- 30 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 16x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.165 in
- Protection tube diameter [mm]
- 4.2 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 2020 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 30 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
Confirm the insertion length (30 mm), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
