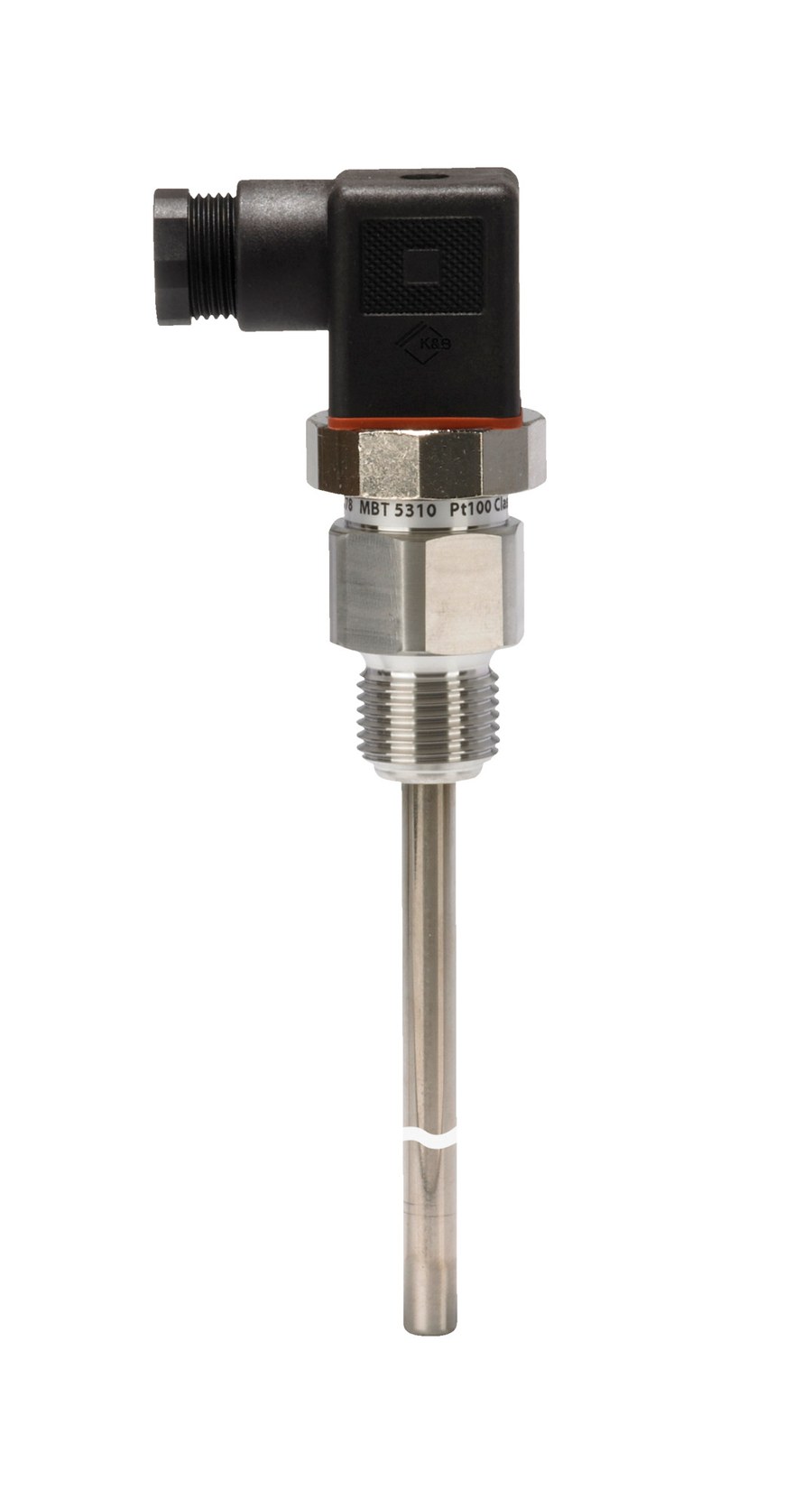

Danfoss MBT 5310 temperature sensor, Pt 100, 242-257 mm adjustable insertion, G 1/2, angular connector Pg 11 (code 084Z3296)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5310 temperature sensor, code 084Z3296 (type designation MBT 5310-00-257-000). Insertion RTD for process, industry and marine temperature measurement. Pt 100 (100 ohm at 0 C) platinum element, Class B tolerance per EN 60751. Insertion length 242-257 mm adjustable; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire; Angular connector, Pg 11 (EN 175301-803-A); IP65 enclosure per IEC 60529. Supplied in a 20-piece multipack. CE marked.
Specifications
- Part number
- 084Z3296
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 242-257 mm adjustable insertion
- Thread standard
- ISO 228-1-A
Compatibility
Confirm the insertion length (242-257 mm adjustable), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Standards
- EN 60751
- ISO 228-1-A
- EN 175301-803-A
- IEC 60529
Approvals
