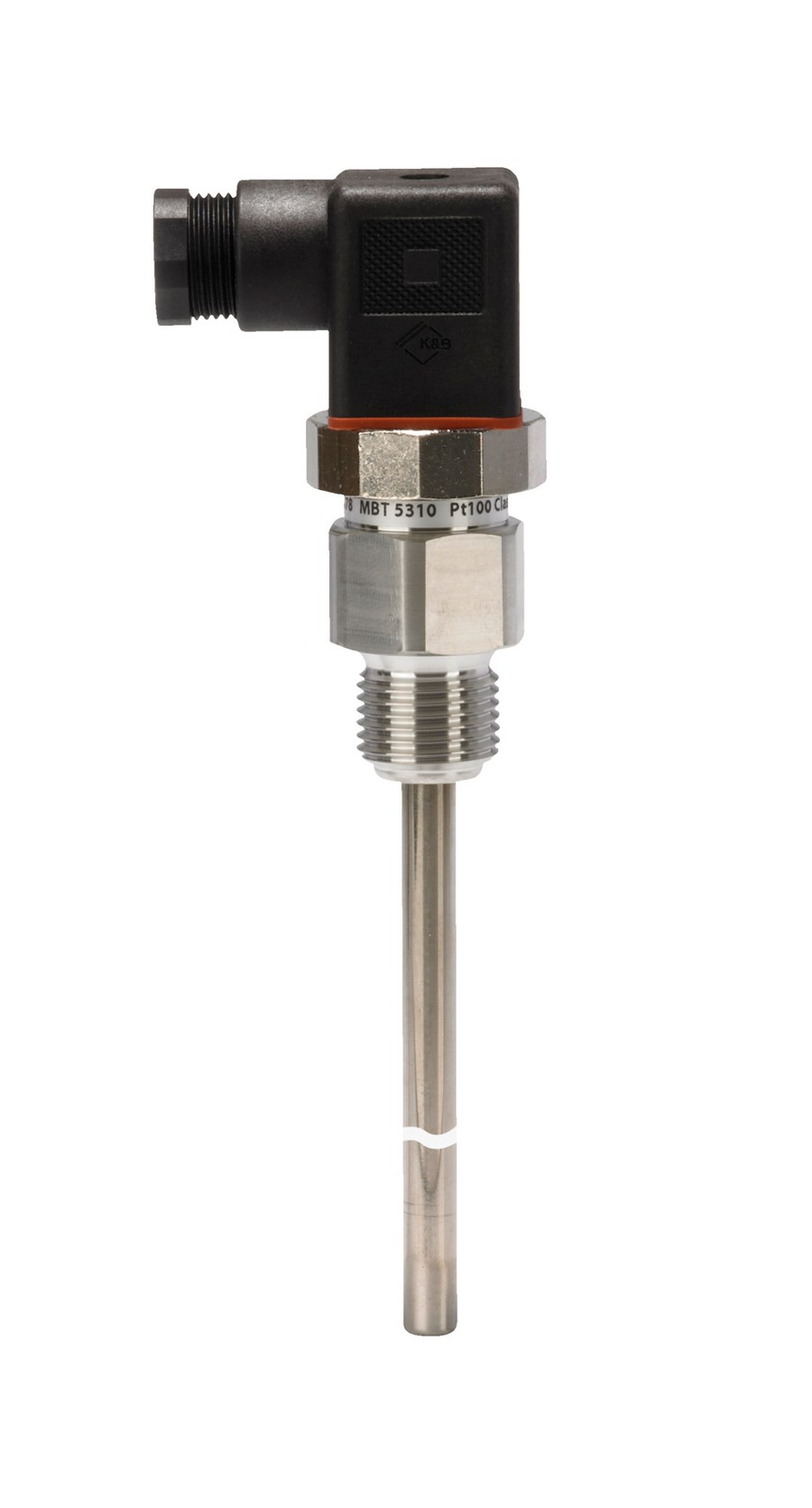

Danfoss MBT 5310 temperature sensor, Pt 100, 215-227 mm adjustable insertion, G 1/2, angular connector Pg 9
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 temperature sensor, code 084Z3232 (type designation MBT 5310-00-227-100). Insertion RTD for process, industry and marine temperature measurement. Pt 100 (100 ohm at 0 C) platinum element, Class B tolerance per EN 60751. Insertion length 215-227 mm adjustable; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output, 2-wire; Angular connector, Pg 9 (EN 175301-803-A); IP65 enclosure per IEC 60529. Supplied in a 20-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5310 (insertion temperature sensor)
- Type designation
- MBT 5310-00-227-100
- Code number
- 084Z3232
- Sensor element
- Pt 100 (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 215-227 mm adjustable
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance), 2-wire
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 20 pc
- Net weight
- 0.222 kg
- Approvals
- CE
- EAN
- 5702423270453
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in] [max]
- 8.9 in
- Insertion length [in] [min]
- 8.5 in
- Insertion length [mm] [max]
- 227 mm
- Insertion length [mm] [min]
- 215 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 215-227 mm adjustable insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
Confirm the insertion length (215-227 mm adjustable), process thread and electrical connector suit the installation, and that the element/output matches the receiving instrument.
Product Documentation
More from Danfoss
Danfoss

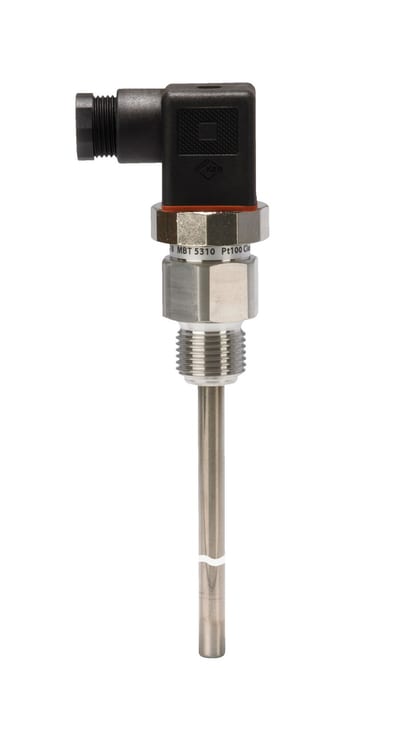

Danfoss MBT 5310 temperature sensor, Pt 100, 242-257 mm adjustable insertion, G 1/2, angular connector Pg 11
084Z3296
Danfoss

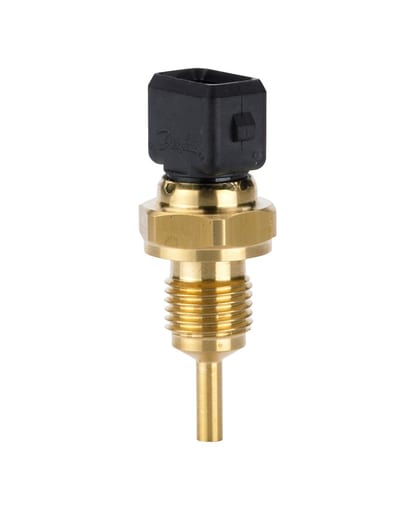

Danfoss MBT 3270 temperature sensor, Pt 100 Class A, 28 mm insertion, G 1/4 brass, AMP Junior Power Timer 2-Pin
