Danfoss MBT 153 flexible cable temperature sensor, NTC 10000 ohm, 3.5 m cable, 2-Wire
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 flexible cable temperature sensor, code 084Z2284 (type designation MBT 153-0990-0350). Cable-style RTD with an AISI 305 stainless-steel measuring tip (6 mm diameter) and an integral cable; designed to be fitted into an MBT 120 sensor pocket so the element can be exchanged without draining the system. NTC thermistor element (10000 ohm at 25 C), 2-wire connection. Cable length 3.5 m. Measuring range -50 to +100 C (-58 to +212 F). Resistance (ohm) output. IP68 sealing per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 153 (flexible cable temperature sensor)
- Type designation
- MBT 153-0990-0350
- Code number
- 084Z2284
- Sensor element
- NTC thermistor (10000 ohm at 25 C)
- Cable connection
- 2-wire
- Cable length
- 3.5 m
- Measuring tip
- AISI 305 stainless steel, 6 mm diameter
- Measuring range
- -50 to +100 C (-58 to +212 F)
- Output signal
- Ohm (resistance)
- Enclosure rating
- IP68 per IEC 60529
- Packing quantity
- 10 pc
- Net weight
- 0.11 kg
- Approvals
- CE
- EAN
- 5702428868839
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 138 in
- Cable length [m]
- 3.5 m
- Cable tempr. range [°C] [max]
- 100 °C
- Cable tempr. range [°C] [min]
- -40 °C
- Cable tempr. range [°F] [max]
- 212 °F
- Cable tempr. range [°F] [min]
- -40 °F
- Cable type
- PVC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Cable
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 10000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 0.1°C at 0 - 70°C
- Sensor element type
- NTC
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 3.5 m cable
- Material
- AISI 305 stainless steel
- Temperature Range
- -50 to +100 C (-58 to +212 F)
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 153 cable sensor. Fit into an MBT 120 sensor pocket for exchangeable service. Confirm cable length (3.5 m), element (NTC 10000 ohm) and 2-wire wiring match the controller input.
Product Documentation
More from Danfoss
Danfoss

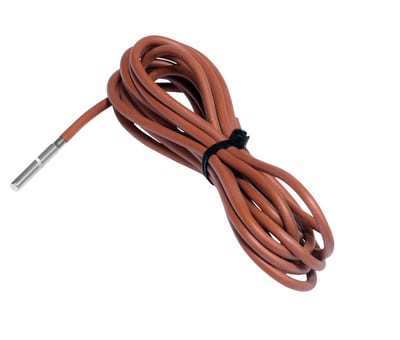

Danfoss MBT 153 flexible cable temperature sensor, Pt 100 100 ohm, 0.2 m cable, 2-Wire
084Z2308
Danfoss

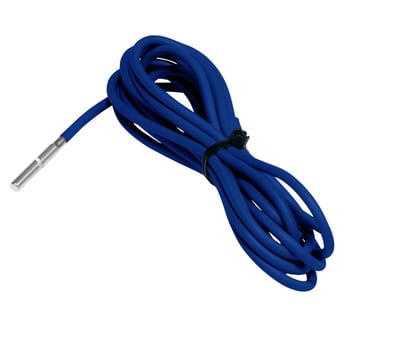

Danfoss MBT 153 flexible cable temperature sensor, Pt 100 100 ohm, 10 m cable, 3-Wire
084Z2312
Danfoss

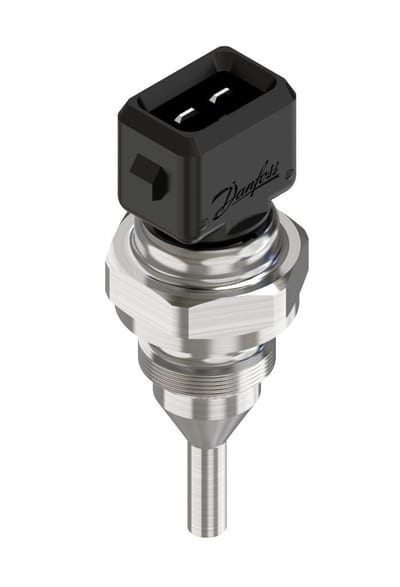

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 28 mm insertion, M 14X1.5 process connection
084Z2298
Danfoss

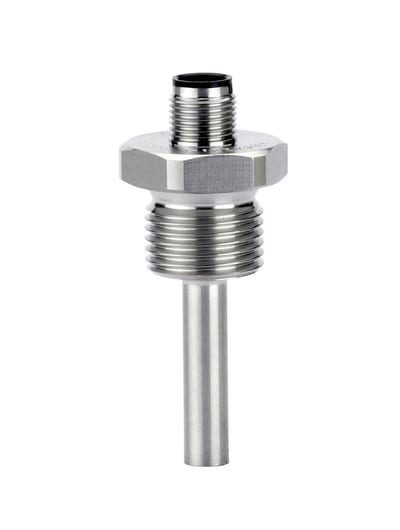

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 30 mm insertion, G 1/4 process connection (code 084Z2319)
Danfoss

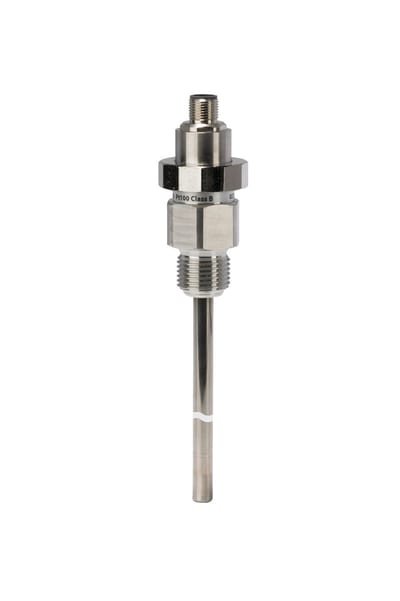

Danfoss MBT 5310 temperature sensor, Pt 1000 1000 ohm, 240 mm, G 1/4 process connection, cable 2-Wire
084Z2301
Danfoss

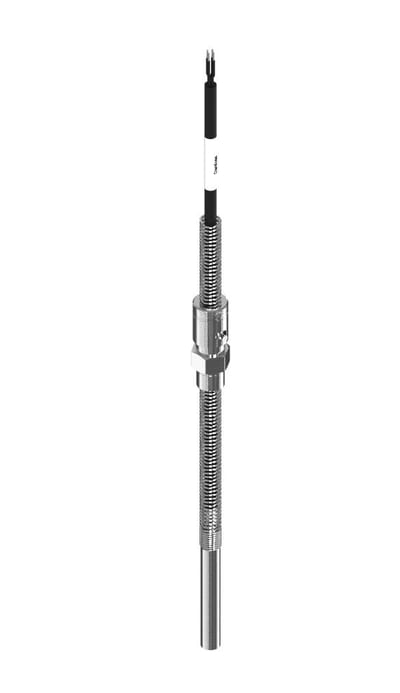

Danfoss MBT 5310 temperature sensor, Pt 1000 1000 ohm, 300 mm, M 12X1 process connection, cable 4-Wire
084Z2321
Danfoss

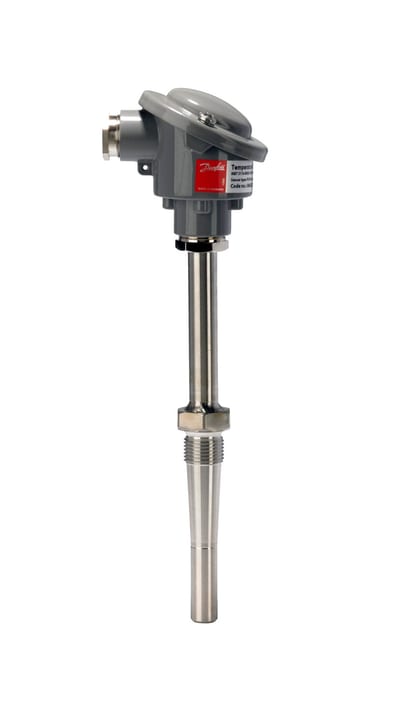

Danfoss MBT 5113 temperature transmitter, Type K thermocouple, 100 mm insertion, G 1/2, 4-20 mA output
084Z2317
Danfoss

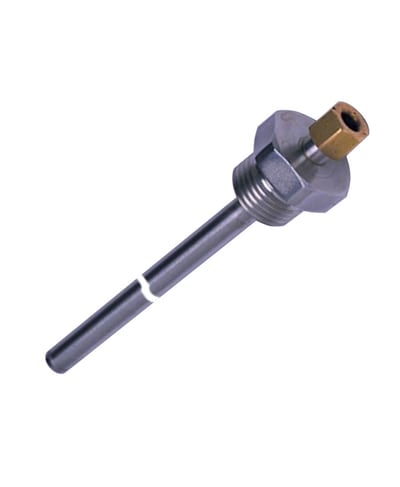

Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, M 18X1.5 connection, AISI 316 Ti
