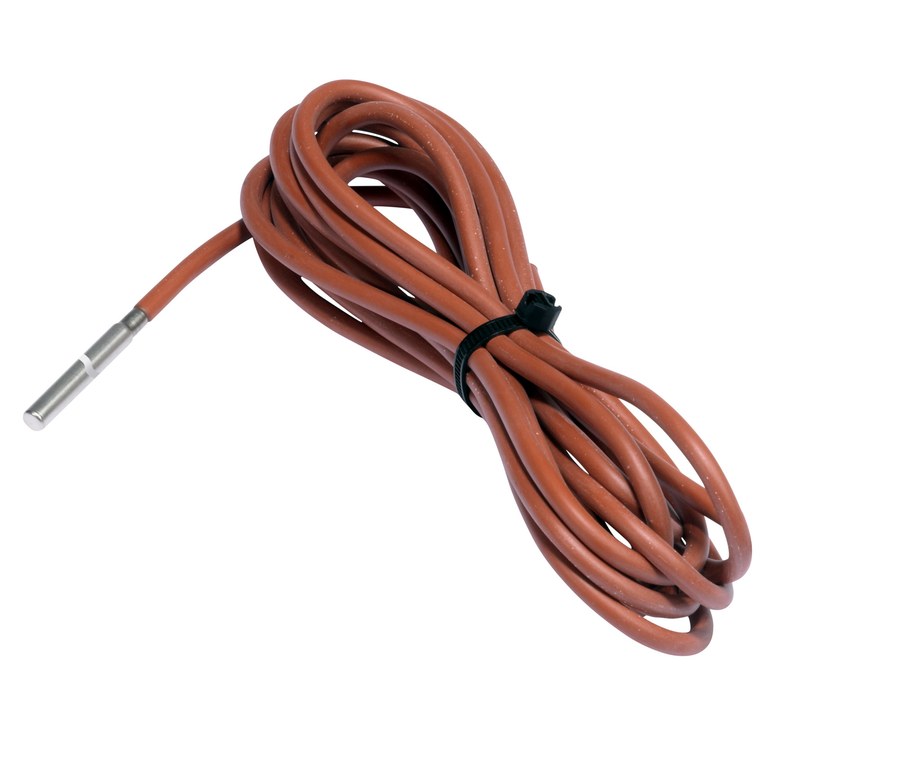

Danfoss MBT 153 flexible cable temperature sensor, Pt 1000, 8.5 m silicone cable, 2-wire (code 084Z6041)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 153 flexible cable temperature sensor, code 084Z6041 (type designation MBT 153-2200-0850). Cable-style RTD with an AISI 305 stainless-steel measuring tip (6 mm diameter) and an integral silicone cable; designed to be fitted into an MBT 120 sensor pocket so the element can be exchanged without draining the system. Standardized Pt 1000 platinum element, Class B tolerance per EN 60751, 2-wire connection. Cable length 8.5 m. Measuring range -50 to +200 C (-58 to +392 F). Resistance (ohm) output. IP68 sealing per IEC 60529. CE marked.
Specifications
- Part number
- 084Z6041
- HS code
- 9025.19
- Material
- AISI 305 stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP68
- Standard size
- 8.5 m cable
Compatibility
MBT 153 cable sensor. Fit into an MBT 120 sensor pocket for exchangeable service. Confirm cable length (8.5 m), element (Pt 1000) and 2-wire wiring match the controller input.
Standards
Approvals
