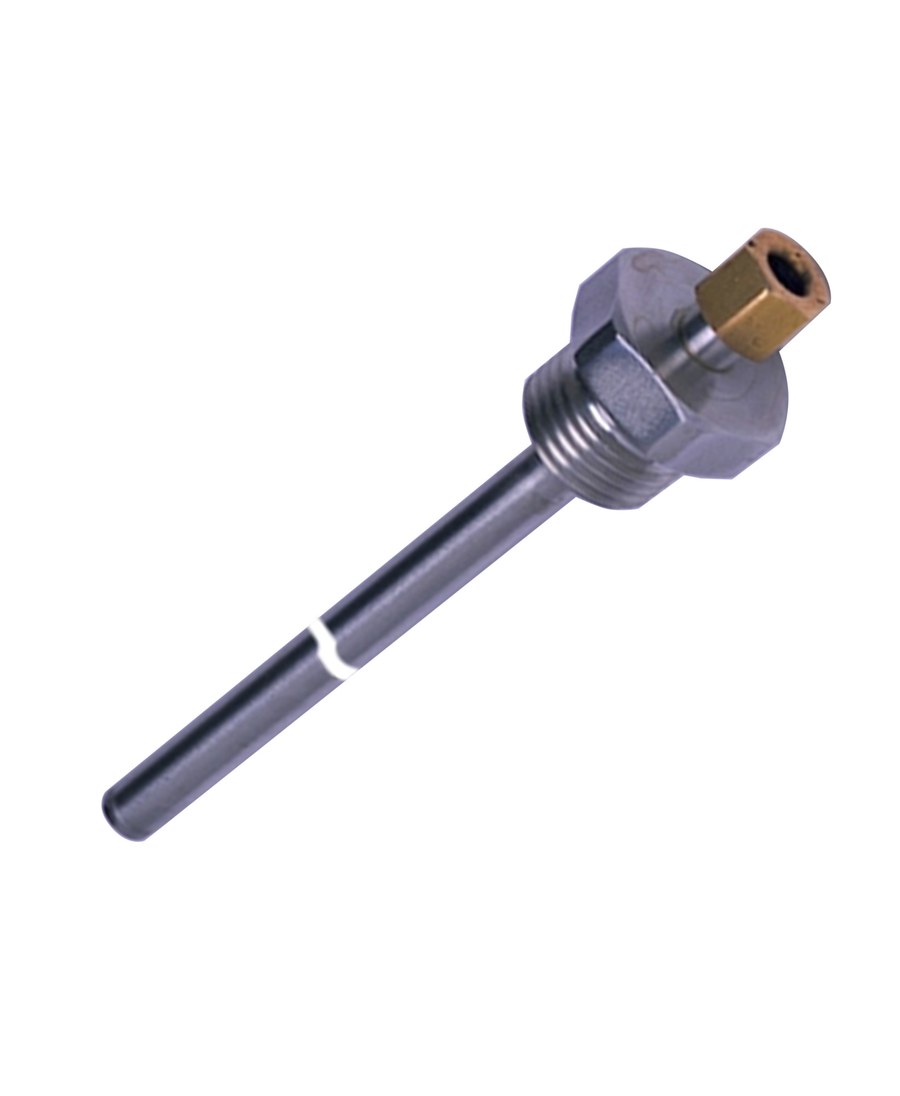

Danfoss MBT 120 sensor pocket (thermowell), 100 mm insertion, G 1/2 connection, AISI 316 Ti
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket, code 084Z6051 (type designation MBT 120-210-100-3). Stainless-steel thermowell that holds an MBT 153 cable temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 6 mm diameter; G 1/2 male (ISO 228-1-A) process connection; insertion length 100 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-210-100-3
- Code number
- 084Z6051
- Function
- pocket for MBT 153 cable temperature sensor
- Insertion length
- 100 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 6 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 20 pc
- Net weight
- 0.098 kg
- Approvals
- CE
- EAN
- 5702423132850
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 153
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket for MBT 153 cable sensors. Confirm insertion length (100 mm) and thread (G 1/2) suit the installation and that the paired MBT 153 measuring tip (6 mm) fits the pocket bore.
